Parker

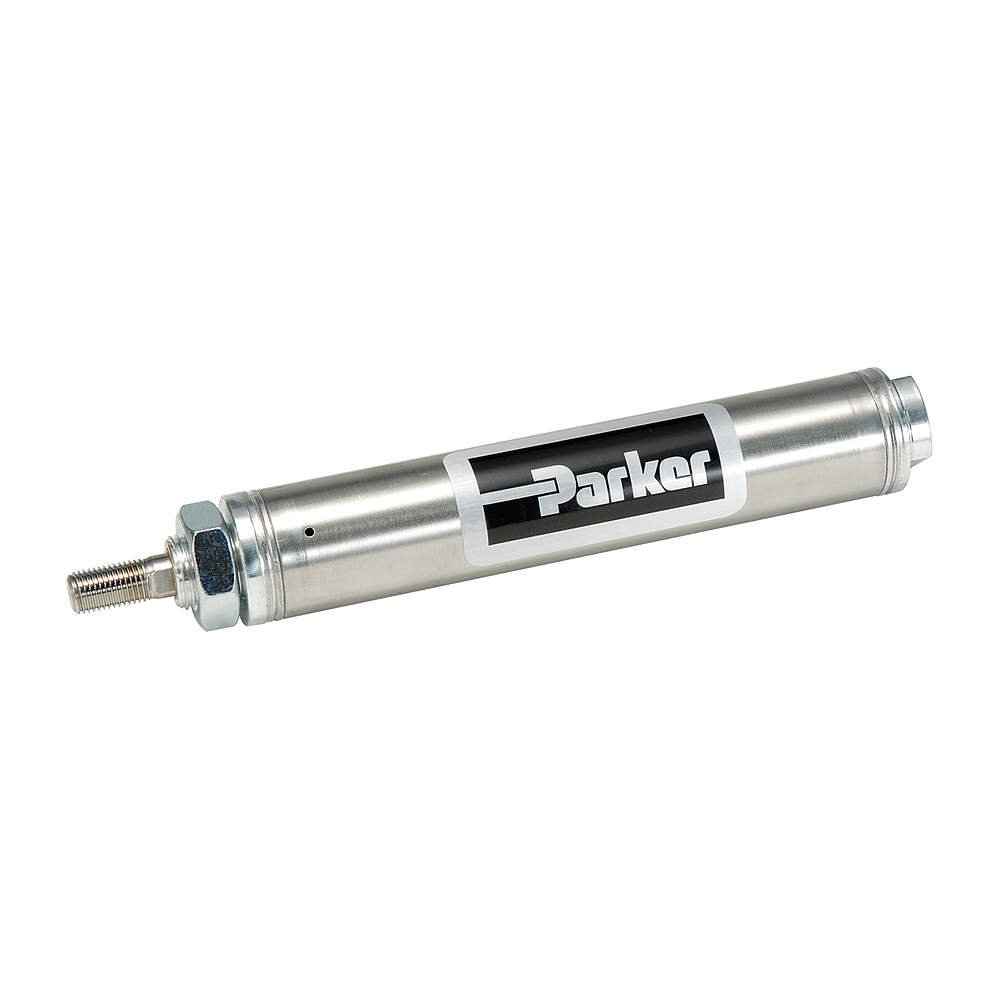

Round Air Cylinder 7/8 Inch Bore 3 Inch Stroke | 49J697 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.88NSR03.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J697
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.39
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead15
extendedQty-2
height, width0.93
jsonUrlData924526ffbdad25e5923b
length7.02
moq, multiple, tierMinQty11
MPN0.88NSR03.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6087182
tierPrice121.75
urlhttps://www.zoro.com/parker-air-cylinder-78-in-bore-3-in-stroke-round-body-single-acting-088nsr0300/i/G6087182/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingSingle Acting
Bore Dia, Air Cylinder Bore Dia7/8 in
Max Pressure250 psi
Body Material304 stainless steel
Rod Dia, Dimension Cc0.25 in
Overall Length7 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke3 in
Mount, Air Cylinder MountNose
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Dimension A1/2 in
Temp Range-10 Degrees to 165 Degrees F
Rod Thread Size1/4-28 UNF
Nose Mount Thread, Dimension N15/8"-18
Dimension B0.624 in
Dimension J0.19 in
Spring Retraction Force3 lb
FinishSilver
Dimension Kk1/4"-28 UNF
Piston Material, End Cap MaterialAluminum
Dimension E0.62 in
FeaturesNon-Switch Ready
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6087182111 @ $21.75
Raptor SuppliesAJ2EEB111 @ $52.35
AmazonB074JDYYGZ11
Applied Industrial11623580911
sustainablesupply.comC16852601-211 @ $30.76
Radwell0.88NSR03.0011
