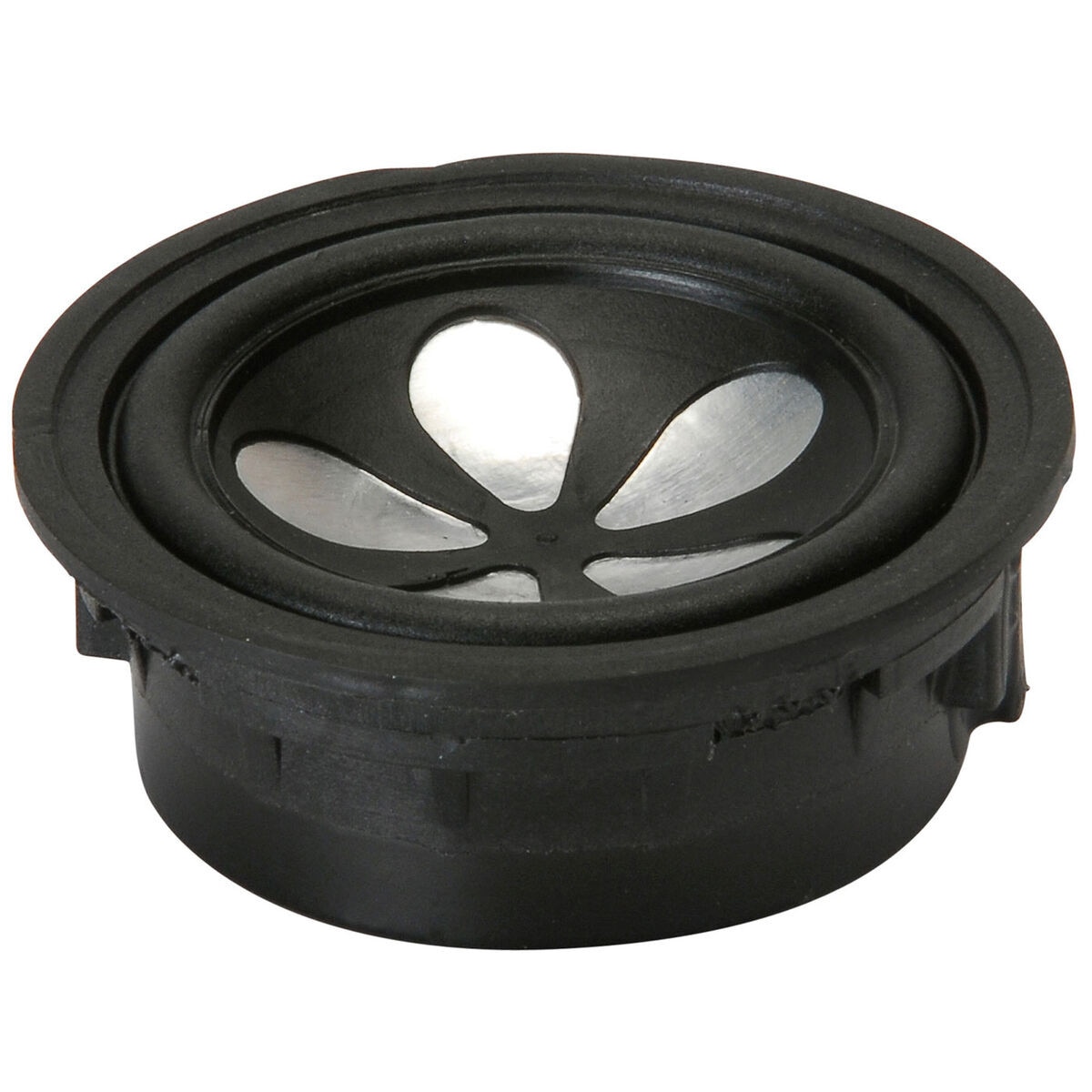

Tang Band W1-2025SA 1" Neodymium Full Range Driver

Tang Band W1-2025SA 1" Neodymium Full Range Driver. Part Number: 264-925 by Tang Band.

Tang Band . W1-2025SA

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-2025SA 1" Neodymium Full Range Driver
UPC844632099434
Weight0.1
WeightUnitlbs
depth, length0.55
diameter, height, width1.57
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW1-2025SA
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-925
snippetTang Band W1-2025SA 1" Neodymium Full Range Driver. Part Number: 264-925 by Tang Band.
Unit of MeasureEach
Nominal Diameter1-1/2"
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance4?
Frequency Response200 to 20,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)200Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)2.39
Electromagnetic Q (Qes)0.57
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)0.002ft?
Mechanical Compliance of Suspension (Cms)1.01mm/N
BL Product (BL)2.14T?m
Maximum Linear Excursion (Xmax)0.75mm
Surface Area of Cone (Sd)6cm?
Cone MaterialAluminum
Surround MaterialSantoprene?
Magnet MaterialNeodymium
Overall Outside Diameter1.57"
Baffle Cutout Diameter1.42"
Depth0.55"
Sealed Volume0.005ft?
Sealed F3365.9Hz
Vented Volume0.01ft?
Vented F3165Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com264-9251-21
