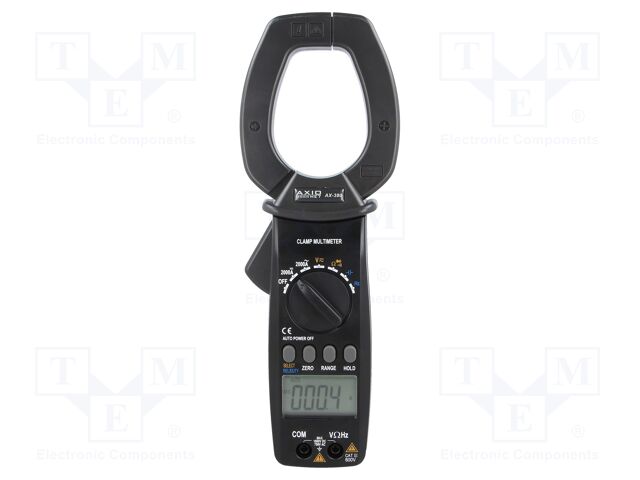

AXIOMET AX-380 | Meter: multifunction; digital,pincers type; ?cable: 55mm; LCD

AXIOMET AX-380 | Meter: multifunction; digital,pincers type; ?cable: 55mm; LC

AXIOMET . AX-380

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAXIOMET
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Meters and Clamp Probes
CategoryL4Meters and AC\/DC Clamp Probes
DimensionUnitmm
Extra Product NameAXIOMET AX-380 | Meter: multifunction; digital,pincers type; ?cable: 55mm; LCD
atoms, moq, multiple1
diameter, length, width55.0
jsonUrlData48e60c934ee4d171922aa6f175320a18.
jsonUrlData264c6819af50980484325
keywordsAXIOMET, AX-380
length_Attrib, width_AttribMax. diameter of measured cable
MPN, SKUAX-380
qtyInStock102
snippetAXIOMET AX-380 | Meter: multifunction; digital,pincers type; ?cable: 55mm; LC
Type of metermultifunction
Kind of meterdigital,
Max diameter of measured cable55mm
Kind of display usedLCD
Display parameters3,5 digit (3999)
DC current measuring range, AC current measuring range400A/
DC current measuring accuracy?(3,5% + 20 digits)
AC current measuring accuracy?(3% + 10 digits)
DC voltage measuring range, AC voltage measuring range400mV/
DC voltage measuring accuracy, Frequency measuring accuracy?(0,5% + 4 digits)
AC voltage measuring accuracy?(0,8% + 10 digits)
Resistance measuring range0.4k?/
Resistance measuring accuracy?(0,8% + 4 digits)
Capacitance measuring range40nF/
Capacitance measuring accuracy?(3,5% + 8 digits)
Frequency measuring range5.12Hz/
Continuity testacoustic indication
Testdiodes
Dimensions275x96x50mm
Standard equipmenttest leads
MeasurementAC current,
Conform to the normCAT III 600V
Operating temperature0...40?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAX-38011021
