Variable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 380...480 V, IP21/UL type 1 | Mayer Electric

Mayer Electric Supply . ATV630D11N4

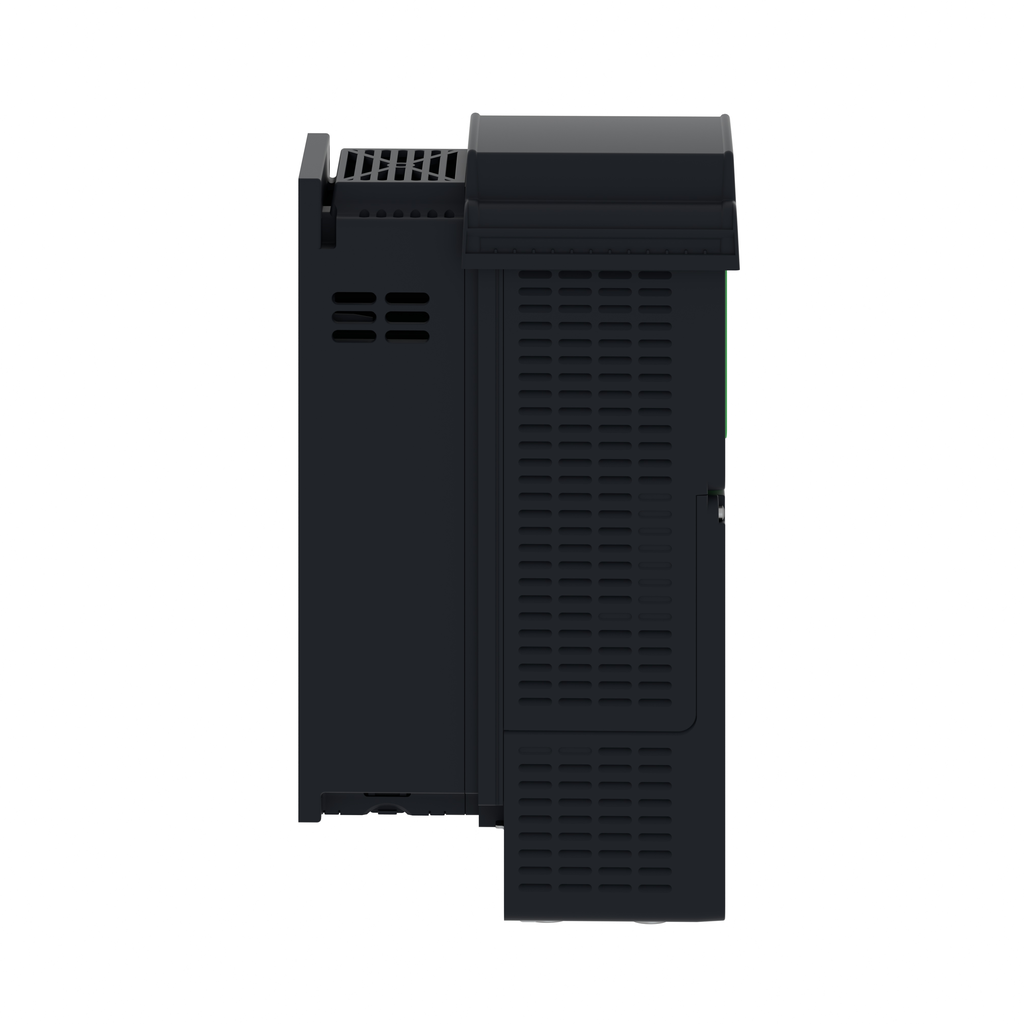

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Process ATV600, ATV630, 11kW/15 hp, 380...480 V, IP21/UL type 1 | Mayer Electric
UPC3606480758164
Weight7.7
WeightUnitkg
Weight_AttribNet Weight
depth, length233.0
height409.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-ATV630-11kW-15HP-380-480V-IP21-UL-type-1-785901360919
jsonUrlData2d63442da-27a3-4f5e-a559-abb200c9ccb3
length_AttribDepth
moq, multiple, tierMinQty1, Quantity Per Set1
MPNATV630D11N4
qtyInStock, Discrete Output Number0
SKUSQDATV630D11N4
tierPrice14237.07
width171.0
width_AttribWidth
Prospective Line Isc50 kA
Product Destinationsynchronous motors || asynchronous motors
Line Current19.8 A 380 V normal duty) || 17 A 480 V normal duty) || 14.1 A 380 V heavy duty) || 12.5 A 480 V heavy duty)
Emc Filterintegrated 50 m EN/IEC 61800-3 category C2 || integrated 150 m EN/IEC 61800-3 category C3
Asynchronous Motor Control Profileconstant torque standard || optimized torque mode || variable torque standard
Variantstandard version
Product Or Component Typevariable speed drive
Apparent Power14.1 kVA 480 V normal duty) || 10.4 kVA 480 V heavy duty)
Switching Frequency2...12 kHz adjustable || 4...12 kHz with derating factor
Communication Port ProtocolModbus TCP || Ethernet || Modbus serial
Product Specific Applicationprocess and utilities
Safety FunctionSTO (safe torque off) SIL 3
Maximum Horse Power Rating15 hp normal duty || 10 hp heavy duty
Supply Frequency50...60 Hz - 5...5 %
Degree Of ProtectionUL type 1 UL 508C
Range Of ProductAltivar Process ATV600
Speed Drive Output Frequency0.1-500 Hz
Ip Degree Of ProtectionIP21IEC 61800-5-1 || IP21IEC 60529
Motor Power Kw11 kW normal duty) || 7.5 kW heavy duty)
[Us] Rated Supply Voltage380...480 V
Maximum Transient Current25.9 A 60 s normal duty) || 24.8 A 60 s heavy duty)
Discrete Input Logic16 preset speeds
Type Of Coolingforced convection
Continuous Output Current23.5 A 4 kHz normal duty || 16.5 A 4 kHz heavy duty
Nominal Switching Frequency4 kHz
Device Short NameATV630
Synchronous Motor Control Profilepermanent magnet motor || synchronous reluctance motor
Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Power Range7-11 kW 380-440 V 3 phase || 7-11 kW 480-500 V 3 phase
Phase3 phase
Net Weight7.7 kg
Type Of Polarizationno impedance
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
Frequency Resolutiondisplay unit 0.1 Hz || analog input 0.012/50 Hz
Analogue Input Number, Relay Output Number3
Motor Slip Compensationadjustable || can be suppressed || not available in permanent magnet motor law || automatic whatever the load
Method Of Accessslave Modbus TCP
Discrete Input Number8
Local Signallingfor local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Number Of Addresses1-247 Modbus serial
Width171 mm
Transmission Rate10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Depth233 mm
Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Electrical Connectioncontrol removable screw terminals 0.5...1.5 mm? AWG 20...AWG 16 || motor screw terminal 6...10 mm? AWG 10...AWG 8 || line side screw terminal 6 mm? AWG 10
Maximum Output Frequency500 kHz
Height409 mm
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s
Transmission FrameRTU
Data Format8 bits, configurable odd, even or no parity
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 ?C analog output
Connector TypeRJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Input CompatibilityDI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Permissible Temporary Current Boost1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Mounting Modewall mount
Analogue Output Number, Pollution Degree2
Physical InterfaceEthernet || 2-wire RS 485
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Enclosure Mountingwall mounted
Isolationbetween power and control terminals
Braking To Standstillby DC injection
Mercury Free, Rohs Exemption InformationYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
UpgradeabilityUpgraded components available
Environmental DisclosureENVPEP1508010EN
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1508010EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsATEX INERIS || CSA || UL || ATEX zone 2/22 || DNV-GL || T?V
Power Dissipation In Wnatural convection 51 W 380 V 4 kHz || forced convection 255 W 380 V 4 kHz
StandardsUL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
Shock Resistance15 gn 11 ms IEC 60068-2-27
Vibration Resistance1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Noise Level56 dB 86/188/EEC
Regulation Loopadjustable PID regulator
Overvoltage CategoryIII
Ambient Air Temperature For Operation-15-50 ?C without derating) || 50-60 ?C with derating factor)
Volume Of Cooling Air103 m3/h
MarkingCE
