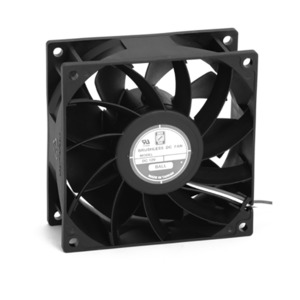

OD9238-12MB Orion Fans | Fans, Thermal Management | DigiKey
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD9238-12MB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD9238-12MB |
| qtyInStock | 0 |
| SKU | 1053-1686-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 92.5mm L x 92.5mm H |
| Width | 38.00mm |
| Air Flow | 90.0 CFM (2.52m?/min) |
| Static Pressure | 0.340 in H2O (84.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection | - |
| Noise | 47.0dB |
| RPM | 3600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | cURus, TUV |
| Weight | 0.463 lb (210.01 g) |
| Current Rating (Amps) | 0.450A |
| Voltage Range | 7 ~ 13.2VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 70000 Hrs @ 40?C |
| Power (Watts) | 12 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1686-ND | 1 | 1 | ||
| Hotenda | H4255938 | 1 | 33 | 1 | 1 @ $16.63, 10 @ $15.84, 25 @ $14.85, 100 @ $13.17, 250 @ $12.38, 500 @ $12.13 |
| iodParts | OD9238-12MB | 1 | 14 | 1 | |
 Carlton Bates Company | 40308486201 | 1 | 1 | 1 @ $0.00 | |
| Digi-Key | 5361043 | 120 | 120 | 120 @ $15.88 | |
 Newark | 36AJ7825 | 1 | 1 | 1 @ $24.00, 1000 @ $22.00 | |
| 10142095 | 1 | 1 | 1 @ $20.00 | ||
| us.rs-online.com | 70807616 | 1 | 1 | 1 @ $24.92, 10 @ $18.48, 25 @ $17.63, 50 @ $16.65 |
