Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Top, Clamp Length 1.81 in, Clamp Material Ductile Iron, Clamp Material Finish Galvanized, Clamp Width 0.81 in, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Includes Locknut Yes, Installation Torque 60 in-lb, Load Capacity 500 lb, Throat Depth 3/4 in
The Anvil Beam Clamp is a C-Type clamp designed for use under roof installations with bar joist type construction or for attachment to structural shapes. Made from ductile iron, it features a 3/8 inch rod size and a maximum load of 500 pounds at the top and 250 pounds at the bottom. The clamp measures 1-9/16 inches in length and includes a set screw and locknut. It meets various industry standards, including Federal Specification A-A-1192A and ANSI/MSS SP-69.
Beam Clamp, Beam Clamp Type C-Clamp, Beam Mount Location Bottom, Top, Clamp Length 1.81 in, Clamp Material Ductile Iron, Clamp Material Finish Galvanized, Clamp Width 0.81 in, For Beam Shape/Type H-Beam, For Threaded Rod Size 3/8 in, Includes Locknut Yes, Installation Torque 60 in-lb, Load Capacity 500 lb, Throat Depth 3/4 in
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G1416651 | 1 | 5151 | 1 | 1 @ $5.75 |
| Grainger | 4HYE5 | 1 | 1 | ||
 Raptor Supplies | AD8CYL | 1 | 1 | 1 @ $4.85 | |
 simsupply.com | ZO-G1416651 | 1 | 797 | 1 | 1 @ $12.78 |
 bpssg.com | 7872 | 1 | 75 | 1 | 1 @ $2.16 |
| 3787 | 1 | 1 | 1 @ $2.25 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

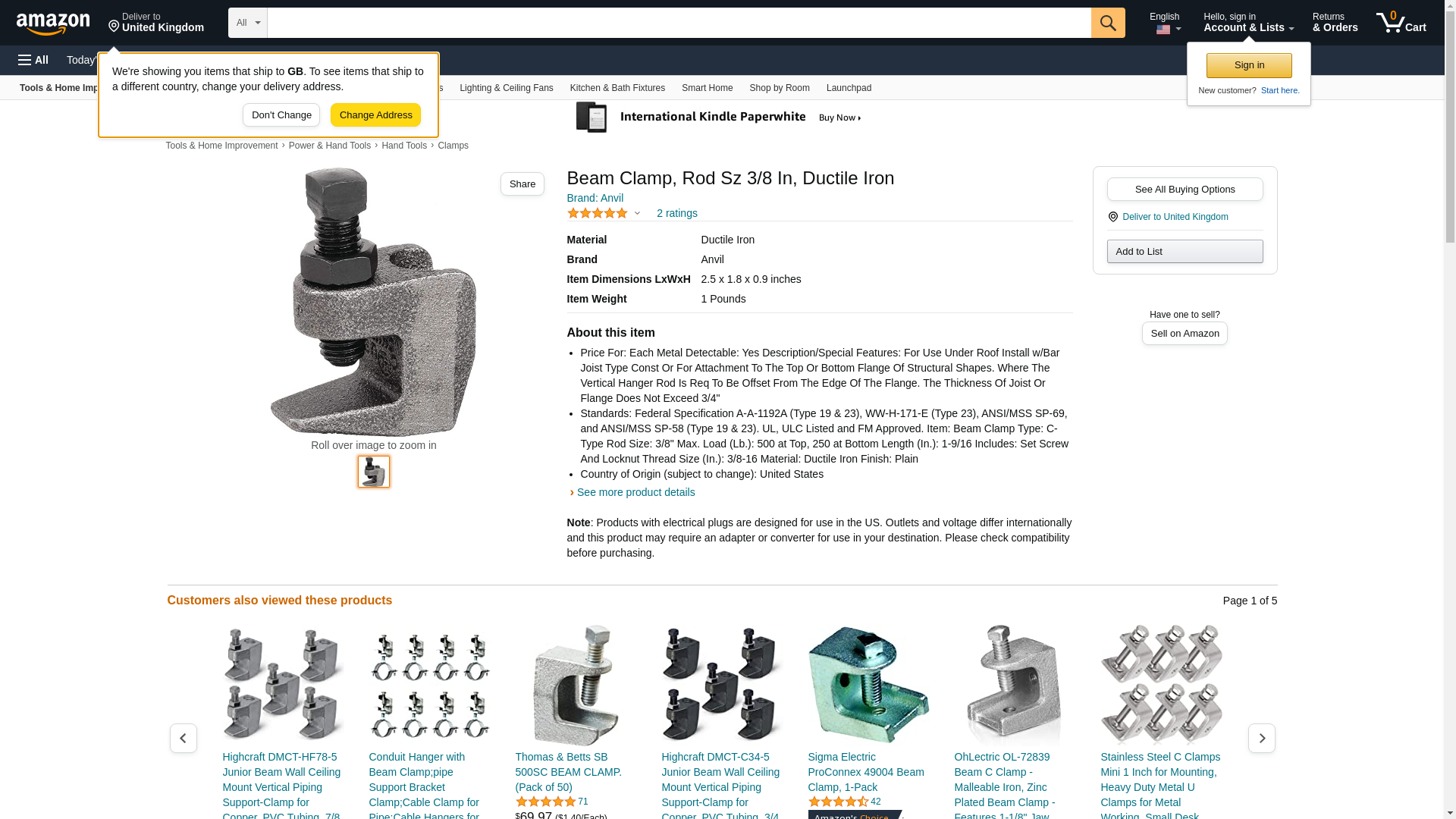

Beam Clamp, Rod Sz 3/8 In, Ductile Iron
Brand: Anvil
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | PLUMBING_FIXTURE |
| Part number | 0500009063 |
| Items per pack | 1 |
| Label | ANVIL |
| Manufacturer | ANVIL |

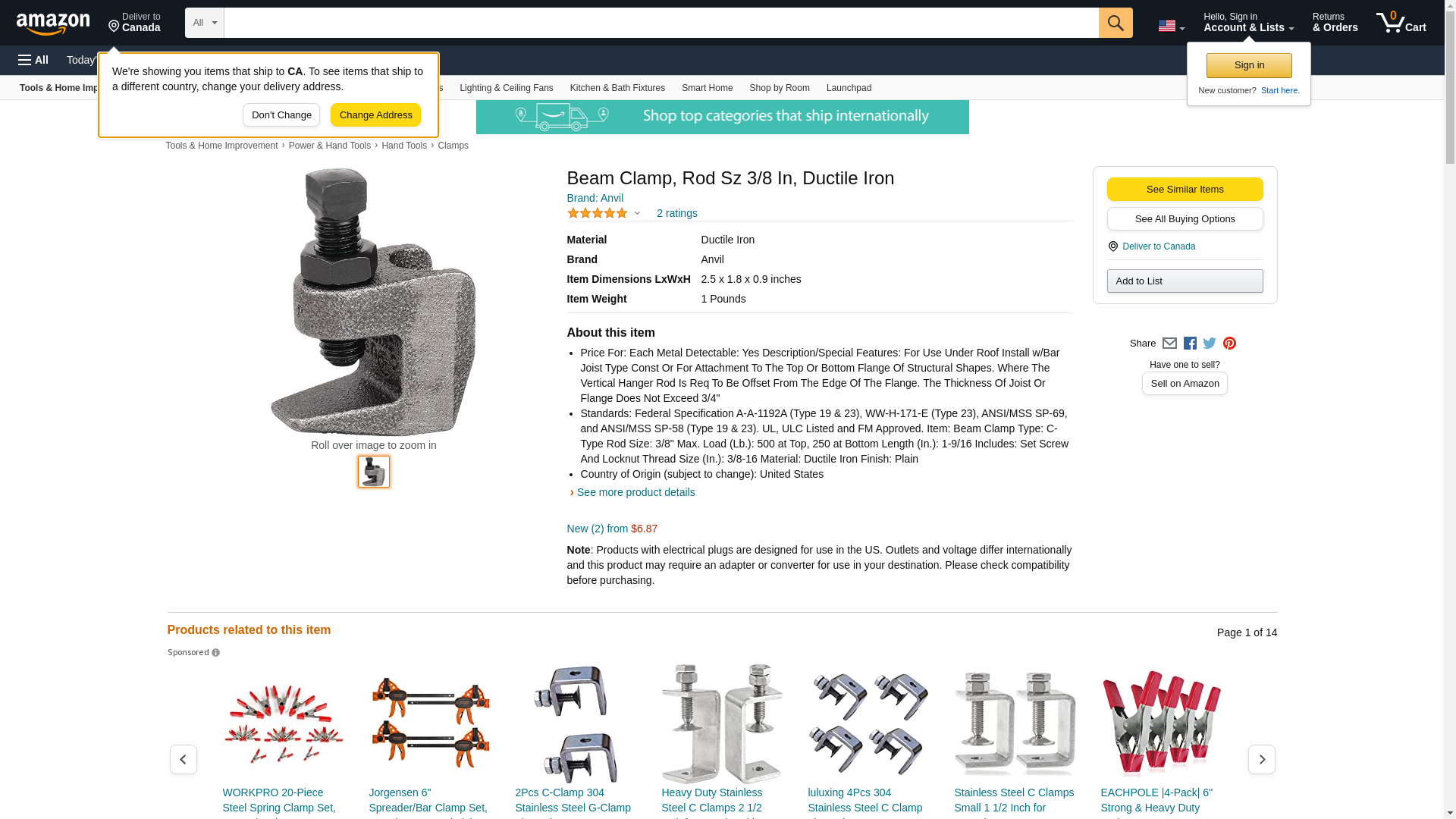

Beam Clamp, Rod Sz 3/8 in, Ductile Iron
Brand: Anvil
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE_CLAMP_VISE |
| Model | 0500009063 |
| Part number | 0500009063 |
| Items per pack | 1 |
| Label | ANVIL |
| Manufacturer | ANVIL |
Beam Clamp, Rod Sz 3/8 In, Ductile Iron
Brand: Anvil
' Beam Clamp, C-Type, Rod Size 3/8 In., Max. Load (Lb.) 500 at Top, 250 at Bottom, Material Ductile Iron, Length (In.) 1-9/16, Thread Size (In.) 3/8-16, Metal Detectable Yes, For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4 In., Includes Set Screw And Locknut, Plain Finish '
Details
- Price For: Each Metal Detectable: Yes Description/Special Features: For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4"
- Standards: Federal Specification A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 19 & 23). UL, ULC Listed and FM Approved. Item: Beam Clamp Type: C-Type Rod Size: 3/8" Max. Load (Lb.): 500 at Top, 250 at Bottom Length (In.): 1-9/16 Includes: Set Screw And Locknut Thread Size (In.): 3/8-16 Material: Ductile Iron Finish: Plain
- Country of Origin (subject to change): United States
