Parker

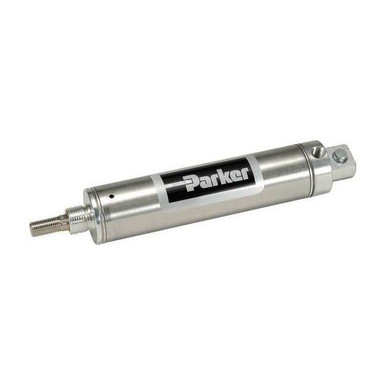

Round Air Cylinder 3/4 Inch Bore 3 Inch Stroke | 49J679 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75PSR03.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J679
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.33
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario, qtyInStock7
countryOfOriginUS
height, width0.86
jsonUrlData924526ffbdad25e5923b
length13.25
moq, multiple, tierMinQty11
MPN0.75PSR03.00
qtyInStockOverride-2
SKUG6187386
tierPrice134.42
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-3-in-stroke-round-body-single-acting-075psr0300/i/G6187386/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingSingle Acting
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc, Dimension Cd0.25 in
Overall Length8.13 in
Rod Thread Length0.5 in
Pivot Hole Dia0.251 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke3 in
Mount, Air Cylinder MountPivot
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Dimension A1/2 in
Temp Range-10 Degrees to 165 Degrees F
End Cap Material, Piston MaterialAluminum
Dimension Kk1/4"-28 UNF
Dimension L0.34 in
Nose Mount Thread, Dimension N11/2"-20
FeaturesNon-Switch Ready
Dimension Cb, Dimension E0.38 in
Spring Retraction Force3 lb
Rod Thread Size1/4-28 UNF
Dimension B0.499 in
FinishSilver
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG61873861711 @ $34.42
Grainger49J67911
Raptor SuppliesAJ2EDG111 @ $67.52
sustainablesupply.comC16852421-211 @ $43.21
Radwell0.75PSR03.0011
simsupply.comZO-G61873861711 @ $52.83
