ODB13391-48HB10A Orion Fans | Fans, Thermal Management | DigiKey

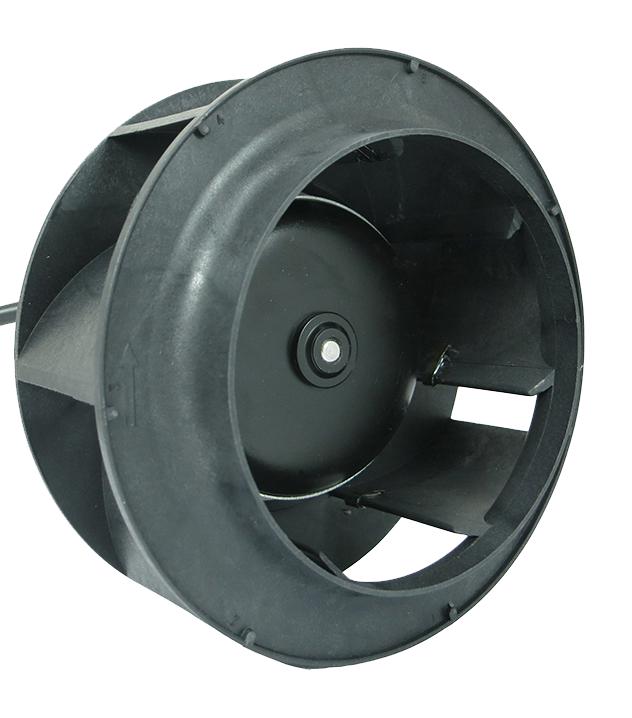

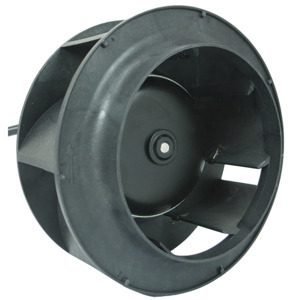

Fan Motorized Impellers 48VDC Round - 133.5mm Dia Ball 257.0 CFM (7.20m?/min) 4 Wire Leads

Orion Fans . ODB13391-48HB10A

Attributes

Brand name, Manufacturer name, Manufacturer, MfrOrion Fans
DimensionUnitmm
Extra Product NameODB13391-48HB10A Orion Fans | Fans, Thermal Management | DigiKey
Weight1.543
WeightUnitlbs
Weight_AttribWeight
atoms, moq, multiple1
extraShipping, qtyInStock0
MPNODB13391-48HB10A
packaging, PackageBulk
SKU8109071
snippetFan Motorized Impellers 48VDC Round - 133.5mm Dia Ball 257.0 CFM (7.20m?/min) 4 Wire Leads
tierMinQty112
tierPrice175.72583
width91.0
width_AttribWidth
CategoryFans, Thermal Management
Series, Ingress Protection-
Product StatusActive
Voltage - Rated48VDC
Size / DimensionRound - 133.5mm Dia
Width91.00mm
Air Flow257.0 CFM (7.20m?/min)
Static Pressure1.900 in H2O (473.3 Pa)
Bearing TypeBall
Fan TypeMotorized Impellers
FeaturesPWM Control, Speed Sensor (Tach)
Noise68.0dB
Power (Watts)60 W
RPM4600 RPM
Termination4 Wire Leads
Operating Temperature14 ~ 149?F (-10 ~ 65?C)
Approval AgencyCE, cURus, TUV, UR
Current Rating (Amps)1.25A
Voltage Range36 ~ 56VDC
Material - FrameAluminum
Material - BladeThermoplastic
Lifetime @ Temp40000 Hrs @ 40?C
Base Product NumberODB13391

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key81090711112 @ $75.73
Newark91AH96281411 @ $80.62, 5 @ $80.62, 10 @ $80.62, 25 @ $80.62, 50 @ $80.62, 100 @ $80.62
jensentools.com10142636111 @ $113.40
Newark51AK1588111 @ $86.36, 5 @ $81.25, 10 @ $77.67, 25 @ $74.61, 50 @ $72.56, 100 @ $70.01
us.rs-online.com71106731111 @ $100.47, 5 @ $97.40, 10 @ $90.50, 25 @ $84.09
