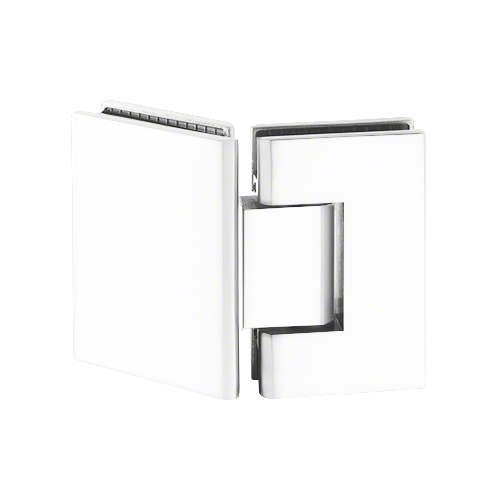

US Horizon H135GTGAW Adjustable Designer Series Glass To Glass Door Hinge 135 Degree Gloss White

The Adjustable Designer Series Glass To Glass Door Hinge will allow for adjustment of door closing position after the initial installation of the door. Solid Brass construction ensures the toughness to hold heavy doors and also guarantees resistance to corrosion hence durability for a long time. They are widely used in homes and various other commercial building projects.

U.S. Horizon Mfg., Inc. . H135GTGAW

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerU.S. Horizon Mfg., Inc.
CategoryIdL3Designer Series
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameUS Horizon H135GTGAW Adjustable Designer Series Glass To Glass Door Hinge 135 Degree Gloss White
atoms, moq, multiple, tierMinQty1, Pack Size1
extendedQty, qtyInStock0
MPNH135GTGAW
qtySourceupdateFromUrlEntry
tierPrice1140.18
Installation Steps1.Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws.
Hardware IncludesAllen Wrench
Other SpecificationsMaximum door weight: - 2-hinge - 80lbs (36kg) - 3-hinge - 120lbs (54kg) Maximum door width: - 2-hinge - 30" (762mm) - 3-hinge - 36" (914mm)
Self-ClosingFrom 25 Degrees
Designed For3/8" and 1/2" (10 and 12 mm) Glass
Angle Degree, Type135 Degree
Mounting StyleGlass to Glass mount
Screw TypeMatching Finish Stainless Steel Allen Style Clamp Screws
MaterialSolid Forged Brass
FinishGloss White
Height3-35/64

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareH135GTGAW111 @ $140.18
