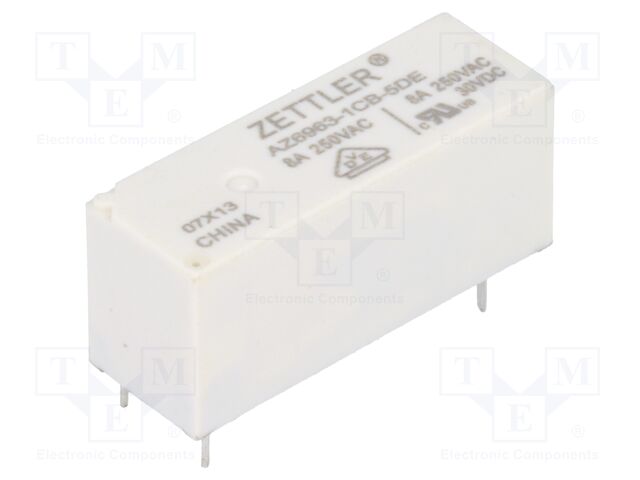

ZETTLER AZ6963-1CB-5DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A; 8A/250VAC; 8A/30VDC
ZETTLER AZ6963-1CB-5DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A; 8A/250VAC; 8A/30VD
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ6963-1CB-5DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A; 8A/250VAC; 8A/30VDC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 578b7df1b8853863d756a35165e3a299. |
| jsonUrlData2 | e3c4637ca8137d15a361 |
| keywords | ZETTLER, AZ6963-1CB-5DE, AZ6963-1CB-05DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | AZ6963-1CB-5DE |
| qtyInStock | 2375 |
| SKU | AZ6963-1CB-05DE |
| snippet | ZETTLER AZ6963-1CB-5DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 8A; 8A/250VAC; 8A/30VD |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.49 |
| tierPrice2 | 1.3 |
| tierPrice3 | 1.16 |
| tierPrice4 | 1.02 |
| tierPrice5 | 0.93 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 5V DC |
| Contact current max | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 30V DC |
| Switched voltage | max. 240V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 113? |
| Coil voltage min | 3.5V DC |
| Coil voltage max | 11.6V DC |
| Operate time | 7ms |
| Body dimensions | 28.8x10.1x12.5mm |
| Release time | 3ms |
| Coil power consumption | 120mW |
| Operating temperature | -40...85?C |
| Relay series | AZ6963 |
| Contact resistance | 100m? |
| Terminal pitch | 3.2mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ6963-1CB-05DE | 1 | 2375 | 1 | 1 @ $1.49, 5 @ $1.30, 20 @ $1.16, 100 @ $1.02, 500 @ $0.93 |
