Optex FA . V2R-1200

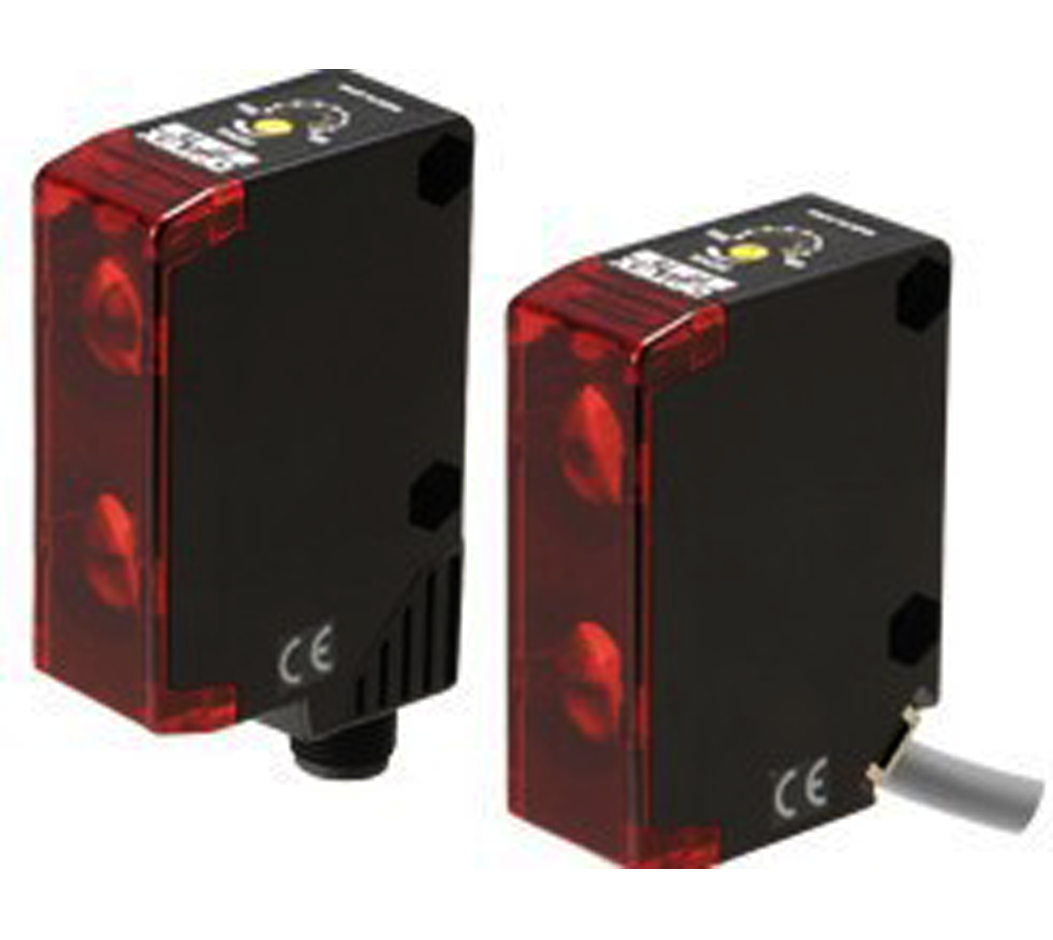

Polarized retro-reflective photoelectric beam sensor that operates on AC or DC voltage. This universal voltage sensor will operate on 12 to 240 Volt AC or 24 to 240 Volt DC. The sensor provides a bright Red LED light source for easy alignment set-up. Maximum distance of the sensor and V-61 plastic corner cube reflector (51mm x 61mm) is 12 meters. Minimum separation is 0.1 meters. Beam spot size is 400mm at 8 meters. The sensor will reliably detect opaque targets and has a single turn sensitivity potentiometer for distance setting. The relay output has single pole - double throw contacts for N.O. and N.C. signals. The heavy duty relay contacts are rated 3 amps at 240VAC and 2 amps at 30VDC. The operation mode of the sensor is fixed at light-on. Dual status indicators include a green LED for stability and an orange LED indicator for the relay output. The ABS enclosure measures (mm) 60H x 44W and 20 thick. A two meter long 5 conductor jacketed cable is provided for hook-up and can be cut to length. Enclosure protection is rated IP67. Price includes both the emitter and receiver and mounting brackets with screws.
