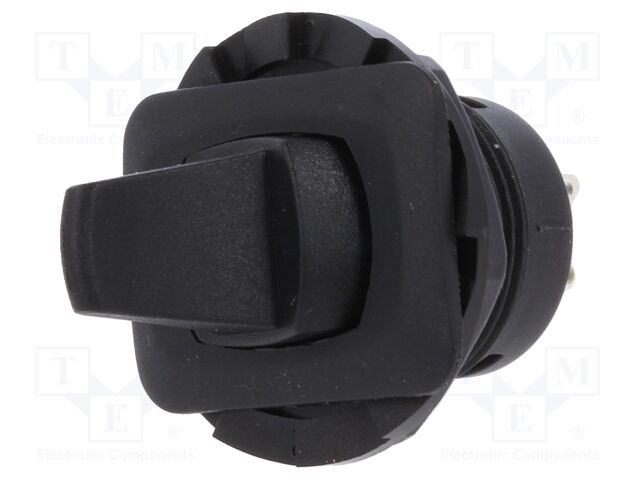

SCI R13-405C | Switch: toggle; Pos: 2; DPDT; ON-ON; 6A/250VAC; Leads: for soldering
SCI R13-405C | Switch: toggle; Pos: 2; DPDT; ON-ON; 6A/250VAC; Leads: for solderin
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Toggle Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-405C | Switch: toggle; Pos: 2; DPDT; ON-ON; 6A/250VAC; Leads: for soldering |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 18.0 |
| height | 13.0 |
| height_Attrib | Knob height |
| jsonUrlData | d0c05d9971c74d858363971e32a876da.5 |
| jsonUrlData2 | 4d7d047ac652765faee4 |
| keywords | SCI, R13-405C, TSR-02C, Switches and Indicators, Toggle Switches |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-405C |
| qtyInStock | 262 |
| SKU | TSR-02C |
| snippet | SCI R13-405C | Switch: toggle; Pos: 2; DPDT; ON-ON; 6A/250VAC; Leads: for solderin |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.19 |
| tierPrice2 | 2.81 |
| tierPrice3 | 2.41 |
| tierPrice4 | 2.28 |
| tierPrice5 | 1.82 |
| Type of switch | toggle |
| Number of positions, Stable positions number | 2 |
| Contacts configuration | DPDT |
| Switching method | ON-ON |
| AC contacts rating @R | 6A / 250V AC |
| Leads | for soldering |
| Operating temperature | -25...70?C |
| Kind of toggle | flat |
| Mounting hole diameter | ?18mm |
| Knob height | 13mm |
| Max contact resistance: | 50m? |
| Electrical life | 6000 cycles |
| Panel thickness | max. 5mm |
| Body material | polyamide |
| Flammability rating | UL94V-0 |
| Manufacturer series | R13-405 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TSR-02C | 1 | 262 | 1 | 1 @ $3.19, 5 @ $2.81, 20 @ $2.41, 100 @ $2.28, 500 @ $1.82 |
