Grundfos 96081004 CR 1S-5 A-FGJ-A-E-HQQE 0.33HP 60HZ 56C Pump End Only - MROSupply.com

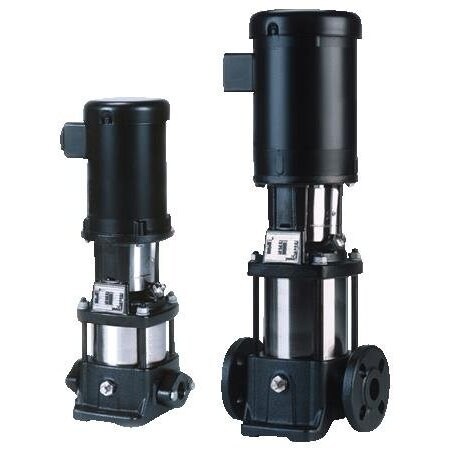

The 96081004 is produced by Grundfos and is described as a Grundfos 96081004 CR 1S-5 A-FGJ-A-E-HQQE 0.33HP 60HZ 56C Pump End Only

Grundfos . 96081004

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
Extra Product NameGrundfos 96081004 CR 1S-5 A-FGJ-A-E-HQQE 0.33HP 60HZ 56C Pump End Only - MROSupply.com
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, Part Number, Product no, Keyword, PartNumber, Part_number, Sku96081004
qtyInStock, Number of reduced-diameter impellers0
SKU5023590
snippetThe 96081004 is produced by Grundfos and is described as a Grundfos 96081004 CR 1S-5 A-FGJ-A-E-HQQE 0.33HP 60HZ 56C Pump End Only
tierPrice11339.81
EAN, EANList, Identifier5700395154627
Product GroupBISS
Temperature range (F)-4 - 248
Density (lb/ftBi)62.29
Max pressure (psi)363
Pipe connection1 1/4 in
Stages, Impellers5
Flange size, Flange size for motor56C
Rate flow (gpm)4.4
Density998.2 kg/m?
Power (P2) required by pump0.25 kW
Pump version, Model, Material codeA
Pumped liquidWater
Product nameCR 1S-5 A-FGJ-A-E-HQQE
Pressure rating for connectionPN 25
Rated head29.1 m
Approvals for drinking waterNSF/ANSI 61
Selected liquid temperature (?C)20
Size of outlet connection, Size of inlet connectionDN 25/32
Temperature (?C)25 bar / -20
ApprovalsCE
Rated flow1.1 m?/h
Motor standardNEMA
Max pressure at stated temp (?C)25 bar / 120
BaseCast iron
Shaft seal arrangementSingle
Pump orientationVertical
Maximum operating pressure (bar)25
Low NPSHN
Flange rating inlet250 lb
Connect codeFGJ
Curve tolerance2012 3B
Pump speed on which pump data are based3425 RPM
Maximum head42.7 m
BearingSIC
Liquid temperature range (?C)-20 - 120
Type of connectionDIN / ANSI / JIS
Code for shaft sealHQQE
ImpellerStainless steel
Code for rubberE
ASIN, AsinB00LBI1BNU
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Bullet_pointBrand: Grundfos Category: HVAC Free Shipping on this item! Product Number: 96081004 U-FGJ-A-E-HQQE 0.33HP 60Hz 56C 96081004
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
ClassificationId720590011
DisplayNameHVAC Equipment
FeatureBrand: Grundfos
Height192 29
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos 96081004
Item_type_keywordindustrial-hvac-components
Linkhttps://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL.jpg
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameMECHANICAL_COMPONENTS
Product_descriptionGrundfos 96081004. U-FGJ-A-E-HQQE 0.33HP 60Hz 56C 96081004
Product_site_launch_date2014-06-26T21:32:05.287Z
Typeean
URLhttp://ecx.images-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg
Unitspixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Weight0.000625
Width500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5023590111 @ $1339.81
PlumbersStock423593111 @ $1099.33
AmazonTPB00LBI1BNU111 @ $1170.10
pumpproducts.com960810041(Ships Direct From Manufacturer)11 @ $1358.40
Edge Supply960810041-211 @ $1158.00
ZoroG405889610111 @ $1555.00
