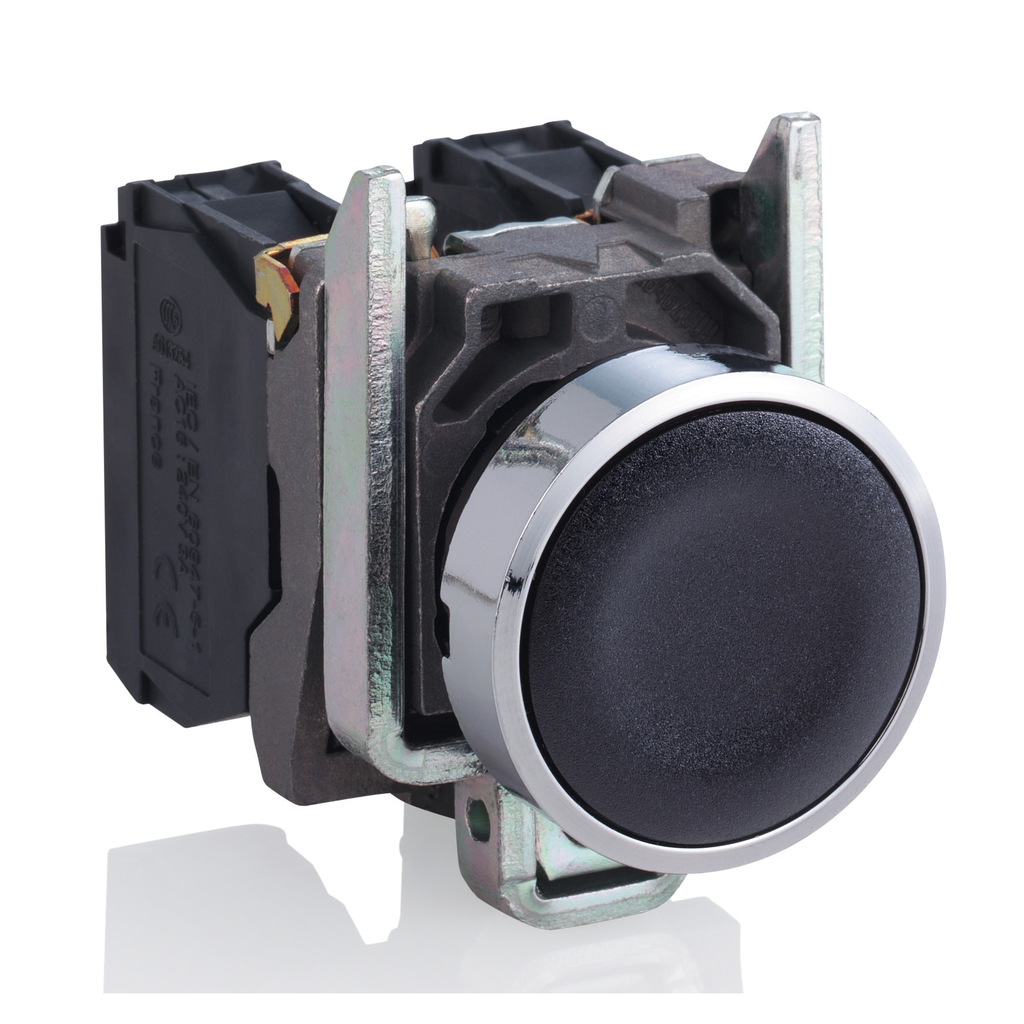

Harmony XB4, Push button, metal, flush, black, ?22, spring return, unmarked, 1 NO + 1 NC | Mayer Electric

SQUARE D . SQDXB4BA25

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Push button, metal, flush, black, ?22, spring return, unmarked, 1 NO + 1 NC | Mayer Electric
UPC3606480502309
Weight0.08
WeightUnitkg
Weight_AttribNet Weight
depth, length52.0
height47.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Push-button-metal-flush-black-Ø22-spring-return-unmarked-1-NO-1-NC-3606480502309
length_AttribDepth
moq, multiple, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4BA25
qtyInStock0
width30.0
width_AttribWidth
Range Of ProductHarmony XB4
Mounting Diameter22 mm
Type Of Operatorspring return
Product Or Component Typepush-button
Shape Of Signaling Unit Headround
Fixing Collar Materialzamak
Head Typestandard
Contacts Type And Composition1 NO + 1 NC
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Profileblack flush, unmarked
Device Short NameXB4
Warranty18 months
Contacts Usagestandard contacts
Height47 mm
Terminals Description Iso N?1(11-12)NC
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.08 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Mechanical Durability10000000 cycles
Width30 mm
Depth52 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsDNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL || BV
Ik Degree Of ProtectionIK06 IEC 50102
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsJIS C8201-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
Overvoltage Categoryclass I IEC 60536
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
