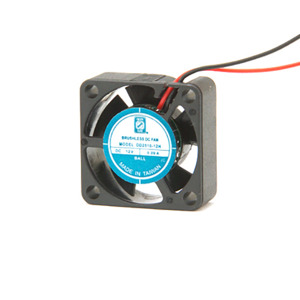

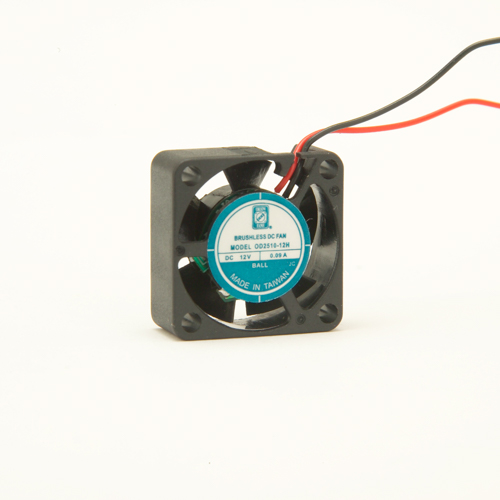

Orion Fans Part Number OD2510-12HB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD2510-12HB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD2510-12HB |
| qtyInStock | 711 |
| SKU | 1053-1189-ND |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 25mm L x 25mm H |
| Width | 10.00mm |
| Air Flow | 2.7 CFM (0.076m?/min) |
| Static Pressure | 0.230 in H2O (57.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Noise | 31.0dB |
| RPM | 12000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | cURus, TUV |
| Weight | 0.022 lb (9.98 g) |
| Current Rating (Amps) | 0.090A |
| Voltage Range | 6 ~ 16VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 60000 Hrs @ 45?C |
| Power (Watts) | 1.08 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1189-ND | 1 | 711 | 1 | |
| OD2510-12HB | 1 | 14 | 1 | 1 @ $12.11, 25 @ $11.51, 100 @ $10.93, 500 @ $10.38, 1000 @ $10.02, 2000 @ $9.52 | |
 arcade-electronics.com | ORI-OD2510-12HB | 1 | -2 | 1 | 1 @ $16.11 |
| Hotenda | H1900523 | 1 | 404 | 1 | 1 @ $14.97, 10 @ $14.26, 25 @ $13.37, 100 @ $11.85, 250 @ $11.14, 500 @ $10.91 |
| RS Delivers | 2508490502 | 1 | 1 | ||
| Future Electronics | 1538099 | 40 | 40 | 40 @ $17.89, 5 @ $14.98, 10 @ $13.88, 25 @ $12.55, 50 @ $11.63 | |
 Carlton Bates Company | 40308486222 | 1 | 1 | 1 @ $0.00 | |
 AmazonTP | B00MEKDK2O | 1 | 1 | 1 @ $25.93 | |
| AmazonSC | B00MEKDK2O | 1 | 1 | 1 @ $17.59 | |
 Newark | 89AH2540 | 1 | 1 | 1 | 1 @ $12.32, 5 @ $12.32, 10 @ $12.32, 25 @ $12.32, 50 @ $12.32, 100 @ $12.32 |
| Newark | 51AK1662 | 1 | 1 | ||
 Galco | OD2510-12HB-ORIN | 1 | 1 | 1 @ $20.53 | |
| 10141831 | 1 | 1 | 1 @ $17.45 | ||
| us.rs-online.com | 70103295 | 1 | 48 | 1 | 1 @ $19.01, 10 @ $17.36, 25 @ $16.70, 50 @ $15.61, 100 @ $14.39, 200 @ $14.18 |
