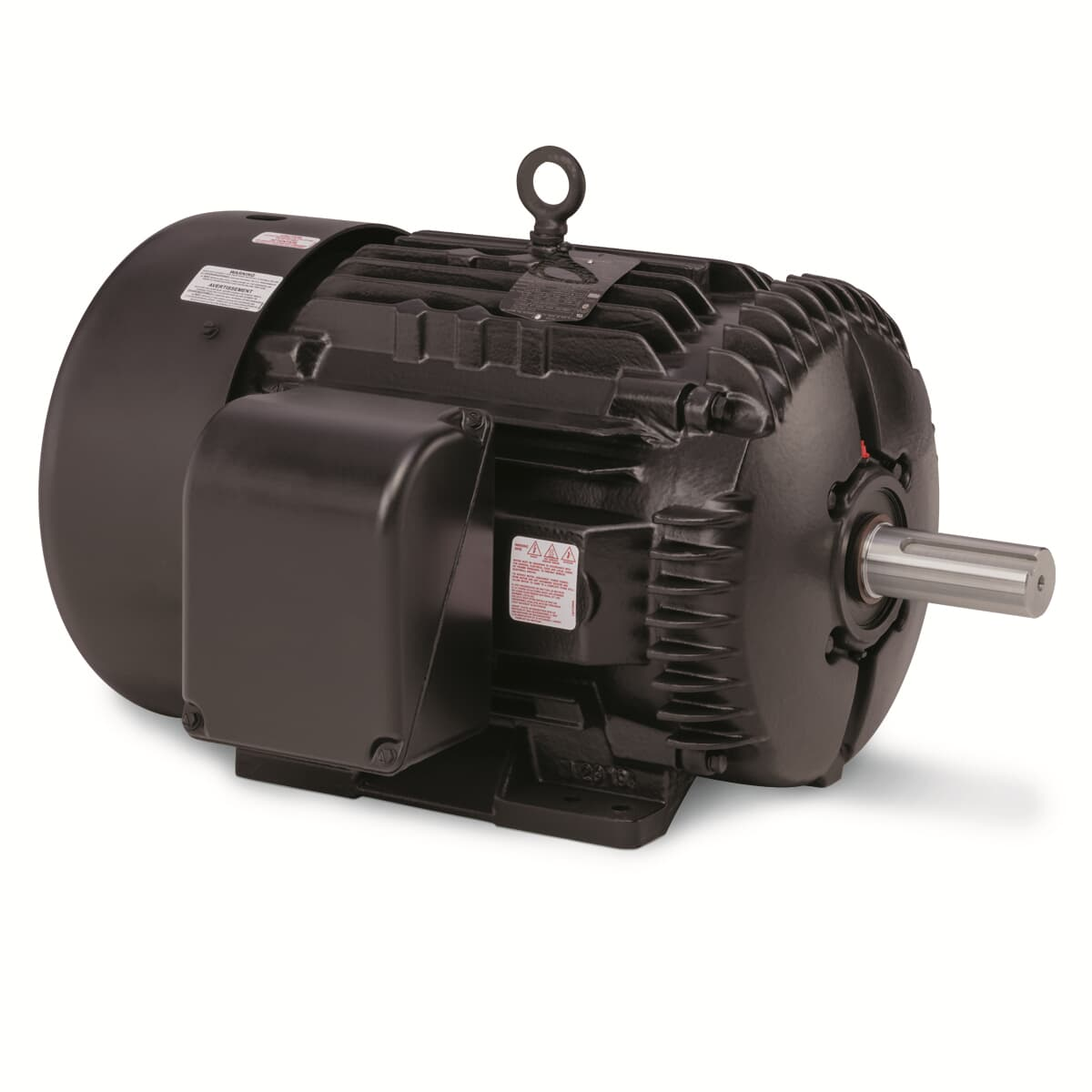

Baldor XT3156T-5 Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 15RPM: 1175Volts: 575Amps: 16Hz: 60Phase: 3Frame: 284TEnclosure Material: IronMounting: RigidShaft Diameter: 1.875"Overall Length: 27.76"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 91.7%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cycle: ContinuousInv
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor XT3156T-5 Three Phase Severe Duty XT Motor |
| Voltage, Volts | 575 |
| Weight | 391 |
| WeightUnit | lbs |
| diameter, height, width | 1.875 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 27.76 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | XT3156T-5 |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 3894.26 |
| Product Type | Three Phase |
| HP | 15 |
| RPM | 1175 |
| Amps | 16 |
| Hz | 60 |
| Phase | 3 |
| Frame | 284T |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 1.875" |
| Overall Length | 27.76" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 91.7% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 10-0000-2254 |
| Ship Weight | 391 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT3156T-5 | 1 | -2 | 1 | 1 @ $3894.26 |
