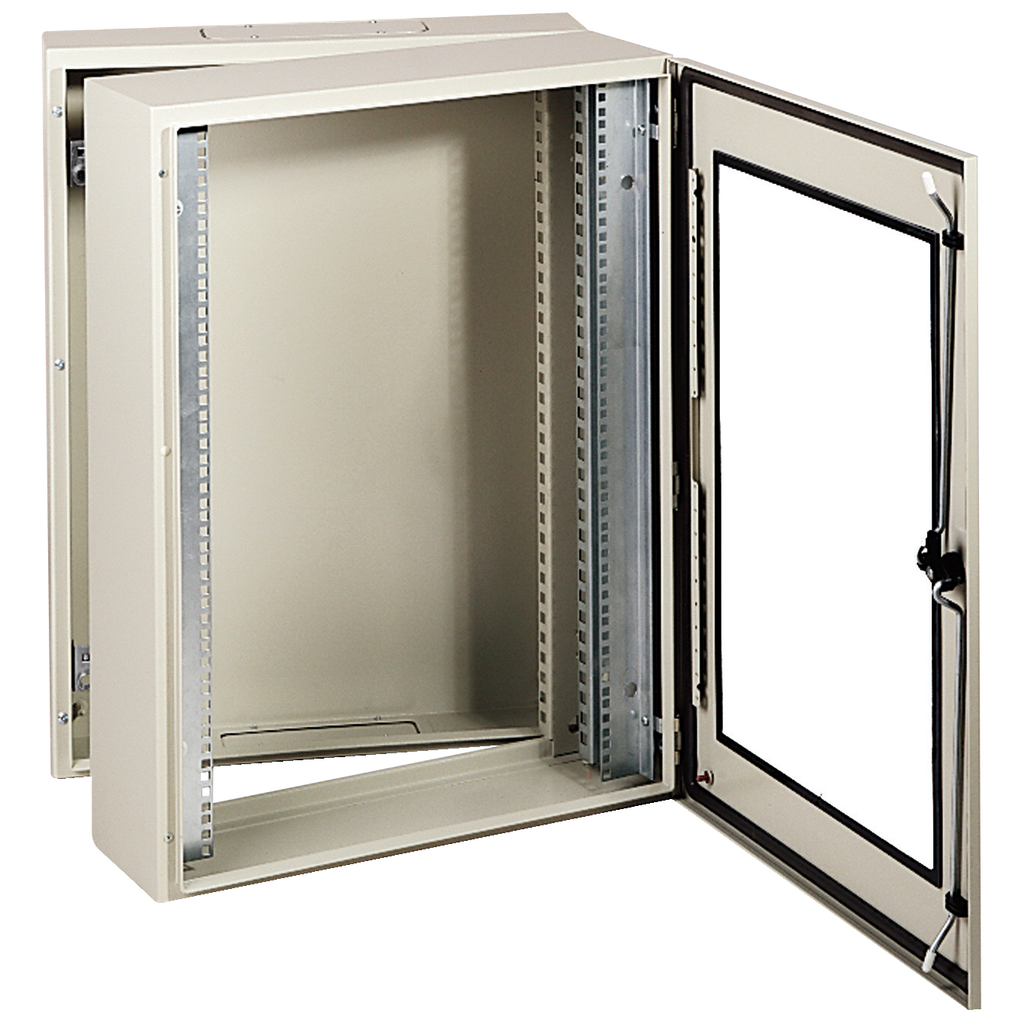

Wall rack VDM 5U 2 bodies D380 | Mayer Electric

SQUARE D . SQDNSYVD2M5U4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameWall rack VDM 5U 2 bodies D380 | Mayer Electric
UPC3606480174605
Weight18
WeightUnitkg
Weight_AttribNet Weight
color, Colorenclosure Gray RAL 7035)
depth, length380.0
height300.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Wall-rack-VDM-5U-2-bodies-D380-3606480174605
jsonUrlData209677391-7622-4087-bda8-aeea0056feb4
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDNSYVD2M5U4
qtyInStock0
tierPrice1891.29
width600.0
width_AttribWidth
Rack Typefixed
Product Destinationelectronics and networks
Body Type2-body
Installation Accessory Typewall-mounting
Product Or Component Typecompact enclosure
Product NameSpacial VDM
Device Composition1 rear part inside the enclosure || 2 cable gland plate top and bottom of rear || 1 19" fixed rack 65 mm back from the front panel || 1 body || 1 door with lock
Enclosure Nominal Height, Height300 mm
Enclosure Nominal Depth, Depth380 mm
Device Applicationelectronic application
Enclosure Nominal Width, Width600 mm
RangeSpacial
Warranty18 months
Accessibility For Operationfront body and front rear
Removable Partsdoor by hinges || body by fixing element || rack
Type Of Gland Platestandard
StandardsIEC 62208
Materialenclosure steel || 19" fixed rack galvanised steel
Surface Finishenclosure epoxy-polyester powder
Number Of Units 19"5
Lock Type3 mm double-bar lock
Door TypeGlass
Net Weight18 kg
Door Opening Sidereversible 120 ?)
Number Of Doorsfront face 1
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP100104EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
Ik Degree Of ProtectionIK08 IEC 62262
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDNSYVD2M5U4111 @ $891.29
