ACTi . E43B

Image Sensor 1/3.2" progressive scan CMOS Minimum Illumination Color: 0.1 lux at f/1.6 (30 IRE, 2,400 K) B/W: 0 lux (IR LED on) Color to B/W switch ISP-based switch, configurable IR Sensitivity Range 700 to 1,100 nm IR LED IR LED x 15 (850 nm) IR Working Distance 49.21' (15.00 m), 0 lux, 30 IRE at maximum exposure gain Electronic Shutter 1/5 to 1/10,000 sec (auto mode), 1/5 to 1/2,000 sec (manual mode) Lens Focal Length / Aperture Varifocal, f3.3 to 12 mm /F1.6 Iris Fixed Focus Manual Mount Type Board Horizontal Viewing Angle 78.0 to 22.0˚ Video Compression H.264 high profile, MJPEG Maximum Frame Rate vs. Resolution 15 fps at 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480 Multi-Streaming Simultaneous dual streams based on 2 configurations Bit Rate 28 kb/s to 6 Mb/s (per stream) Bit Rate Mode Constant, variable Image Enhancement Basic WDR White Balance: Automatic, hold, and manual Brightness Contrast Auto Gain Control Digital Noise Reduction Flickerless Privacy Mask Type 4 configurable regions Text Overlay User-defined text on video Graphics On-Screen: User defined image layer on video Image Orientation Flip and mirror Network Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector Security IP address filtering; HTTPS encryption; password-protected user levels; IEEE 802.1X network access control Alarm Alarm Triggers Video motion detection (3 regions) Alarm Response Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots

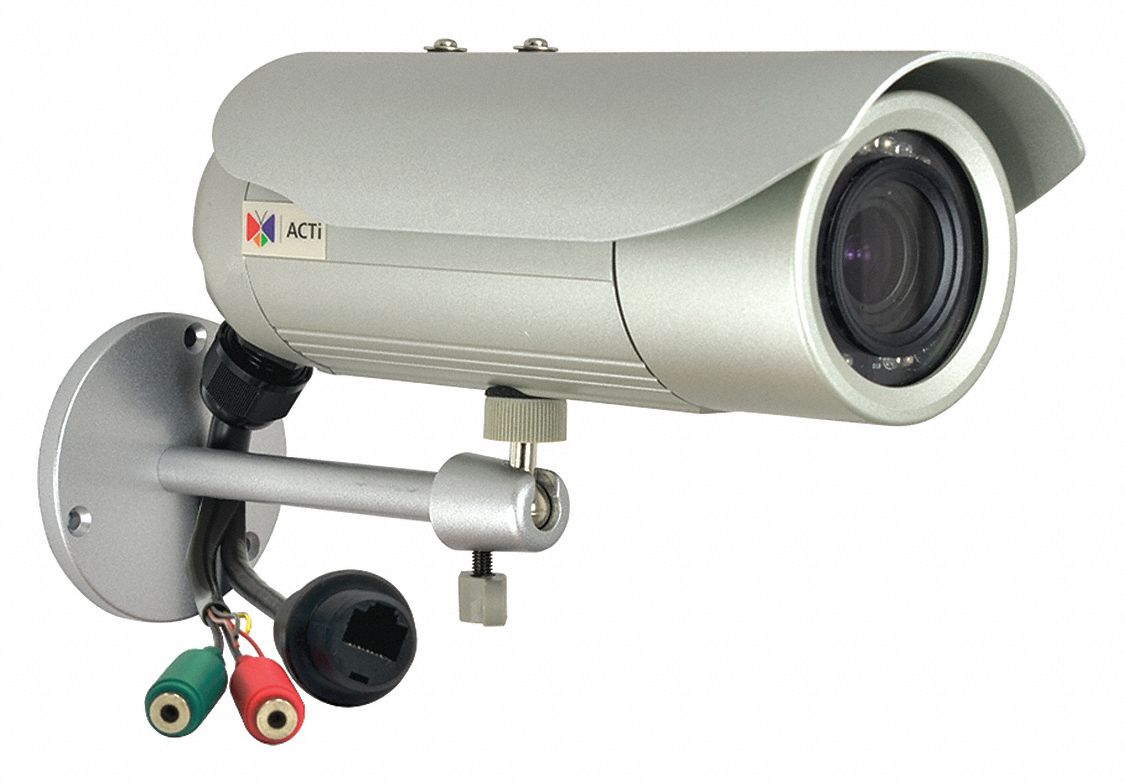

ACTi E43B 5MP Bullet Camera with D/N, Adaptive IR, Basic WDR, Vari-focal Lens, f2.8-12mm/F1.4 (HOV:69.2°-28.2°), H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP68, IK10, DI/DO Key Features Day & Night with Adaptive IR LED Vari-focal Lens with f2.8-12mm/F1.4 Basic WDR (74 dB) Event trigger, response and notification Specifications Maximum Resolution: 5MP Application Environment: Outdoor Image Sensor: Progressive Scan CMOS Sensor Size: 1/3.2" Effective Pixels: 2592x1944 Low Light Sensitivity: Standard Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400K); B/W: 0 lux at F1.4 (IR LED on) Mechanical IR Cut Filter: Yes IR Sensitivity Range: 700-1100nm IR LED: Adaptive IR LED x 15 (850 nm) IR Working Distance: 30m Horizontal Resolution: 1350 TV Lines S/N Ratio: 52 dB Lens Mount: Board Horizontal Viewing Angle: 69.2°-28.2° Vertical Viewing Angle: 54.0°-21.2° Compression: H.264 (Baseline/Main/High profile), MJPEG Bit Rate: 28Kbps-6Mbps (per stream) Digital Noise Reduction: DNR On-Screen Graphics: Yes Audio Type: 2-way, Line-in, Line-out Audio Compression: 8 kHz, 16 bit encoding, Mono, PCM, G.711 Ethernet Port: 1 x RJ-45 pigtail connector GPS Position: Manual setting Profile S, Profile G, Profile T, Profile Q Power Source: PoE Class 2 (IEEE802.3af) Power Consumption: 5.76W (PoE) Environmental Casing: Weatherproof (IP68), Vandal proof metal casing (IK10) Starting Temperature: -20°C~50°C Operating Temperature: -40°C~50°C Operating Humidity: 10%-85% RH EAN: 4718201798003 UPC: 888034004337 Dimensions: 3.03"x8.58" Weight: 2.11lb

ACTi E43B 5 Megapixel Network Camera - Monochrome, Color - 98.43 ft - Motion JPEG, H.264 - 2592 x 1944 - 2.80 mm - 12 mm - 4.3x Optical - CMOS - Cable - Bullet, Pole Mount, Ceiling Mount, Corner Mount, Wall Mount

IP Camera, 1080p, Color, Bullet, Lens Varifocal, Power Required 12VDC, Length 8-19/32 In., Width 3.03 In., Depth 8-19/32 In., Height 3-1/32 In., Focal Length 2.80 to 12.00mm, Min. Light Level 0.0 Lux, Line Resolution 5 MP, Wall Mount, Pixels 5 MP, Camera Body Color White, Luminance Factor 0.0 lux, Illumination Yes, Indoor / Outdoor Outdoor, For Use With Video Surveillance, Day/Night Capable Yes, Operating Temp. Range -40 Degrees to 122 Degrees F, IP Rating IP66, Connection Type RJ45

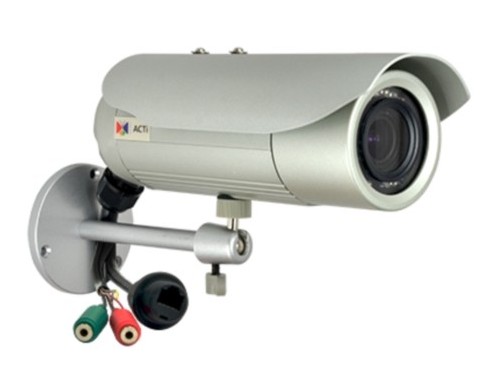

The ACTI CORPORATION E43B offer a 5MP Bullet with D/N, Adaptive IR, Basic WDR, Vari-focal lens, f2.8-12mm/F1.4 (HOV:69.2°-28.2°), H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP68, IK10 (metal casing), DI/DO
