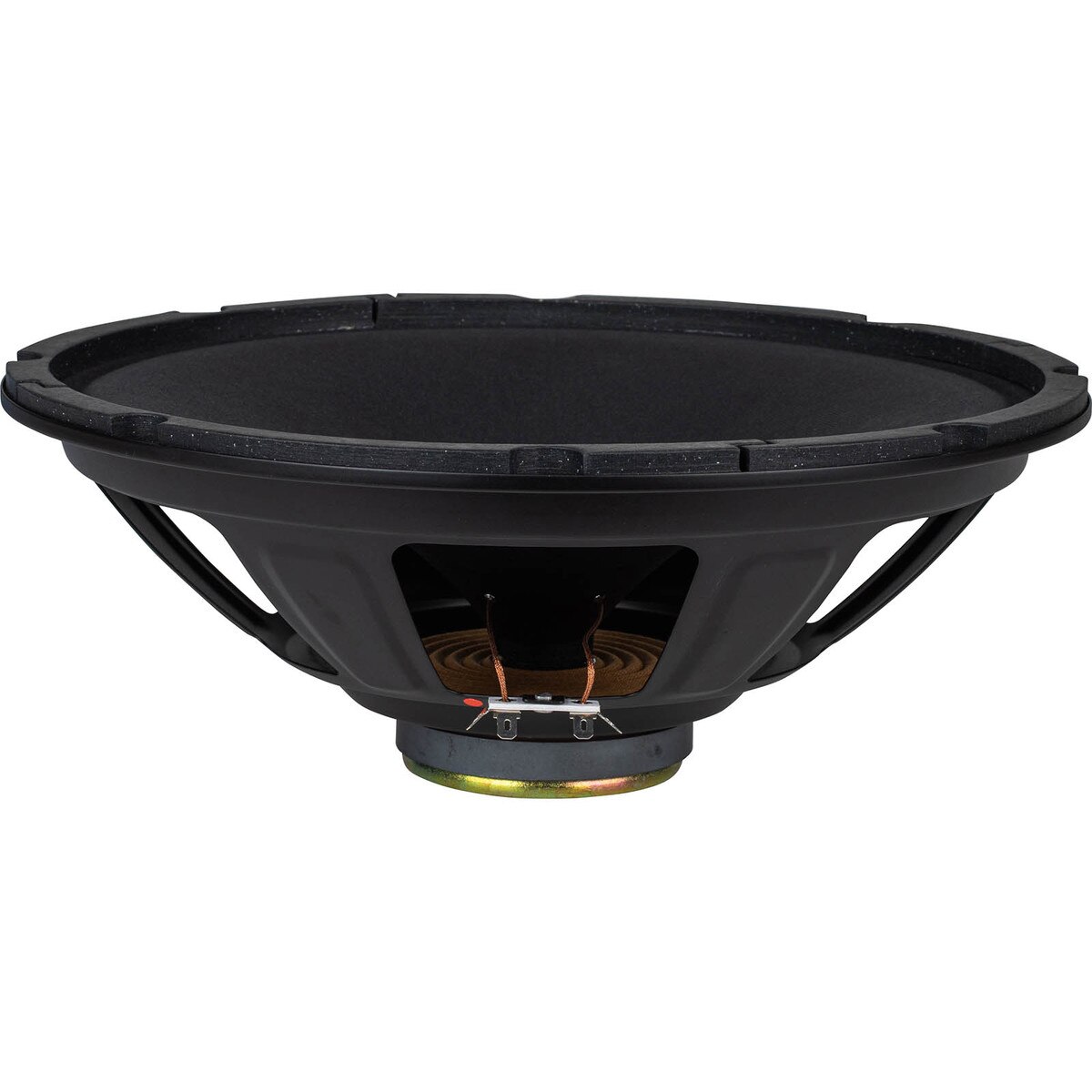

330-055 12" Musical Instrument Speaker 8 Ohm

Factory Buyouts . 330-055

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product Name330-055 12" Musical Instrument Speaker 8 Ohm
UPC848864073644
Weight3.15
WeightUnitlbs
depth, length4.5
diameter, height, width12.0
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, Model330-055
qtyInStock85
SKU, Part Number299-4238
tierMinQty25
tierMinQty310
tierPrice19.88
tierPrice28.88
tierPrice37.88
Unit of MeasureEach
Nominal Diameter, Overall Outside Diameter12"
Bolt Circle Diameter11.5
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance8?
Frequency Response75 to 8,000Hz
Sensitivity94.42dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)75.6Hz
DC Resistance (Re)5.756?
Voice Coil Inductance (Le)0.4289mH
Mechanical Q (Qms)8.859
Electromagnetic Q (Qes)2.682
Total Q (Qts)2.059
Compliance Equivalent Volume (Vas)3.921ft?
Diaphragm Mass Inc Airload (Mms)16.8g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)547.4cm?
Cone Material, Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Baffle Cutout Diameter11"
Depth4.5"
# Mounting Holes8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-423818511 @ $9.88, 5 @ $8.88, 10 @ $7.88
