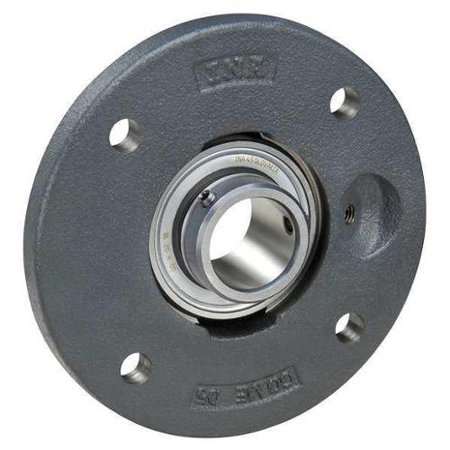

Flange Bearing, Number of Bolts 4, PME Series, Bore Dia. 55mm, Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Eccentric Locking Collar Locking Type, Mounting Hole Center 106.7mm, Overall Height 185mm, Overall Width 48.4mm, Overall Length 185mm, Bolt Hole Size M16, Ball Bearing Insert, Dynamic Load Capacity 43,500 N, Static Load Capacity 29,000(N), Temp. Range -20 Degrees to 120 Degrees F, Painted Finish, Gray, GTB14 DIN1680-2 Standards Features Finish: Painted Includes: C3 Clearance, Grade 10 Balls, Lithium Soap Mineral Oil Grease, Polyamide 66 Retainer, Threaded Lubrication Hole Item: 4-Bolt Flange Bearing Temp. Range: -20 Degrees to 120 Degrees F Dimension S: 3mm Housing Material: Cast iron Overall Height: 185mm Overall Length: 185mm Overall Width: 48.4mm Series: PME Standards: GTB14 DIN1680-2 Locking Type: Eccentric Locking Collar Dimension A: 27.5mm Dimension D: 55mm Bolt Size: M16 Dimension H: 185mm Dimension J: 150mm Dimension N: 18mm Bore Dia.: 55mm Static Load Capacity: 29,000 N Dynamic Load Capacity: 43,500 N Bearing Insert Type: Ball Bearing Insert Material: 52100 Chrome Steel Bearing Lubrication: FAG Arcanol-MULTI2 or NLGI #2 Equivalent

Flange Bearing, Number of Bolts 4, PME Series, Bore Dia. 55mm, Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Eccentric Locking Collar Locking Type, Mounting Hole Center 106.7mm, Overall Height 185mm, Overall Width 48.4mm, Overall Length 185mm, Bolt Hole Size M16, Ball Bearing Insert, Dynamic Load Capacity 43,500 N, Static Load Capacity 29,000(N), Temp. Range -20 Degrees to 120 Degrees F, Painted Finish, Gray, GTB14 DIN1680-2 Standards Features Finish: Painted Includes: C3 Clearance, Grade 10 Balls, Lithium Soa
