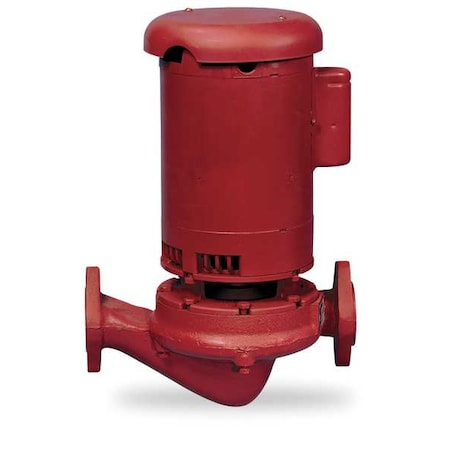

Hot Water Circulating Pump, 3, 208 to 230/460, 3 Phase, Flange Connection

Bell & Gossett . 90-15T

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBell & Gossett
DimensionUnitinch
GraingerSku4RD50
Extra Product NameHot Water Circulating Pump, 3, 208 to 230/460, 3 Phase, Flange Connection
Voltage208 to 230/460
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)United States
extendedLead13
extendedQty-2
height7.5
height_AttribHeight
length17.5
length_AttribLength
moq, multiple, tierMinQty1, Number of Speeds1
MPN90-15T
qtyInStock0
SKUG0965851
tierPrice12383.81
url//www.zoro.com/static/assets/bundle/css/suppliers.dac3c1bf.css
width9.5
width_AttribWidth
Item, HVAC Circulating Pump TypeHot Water Circulating Pump
HP, Phase - Pumps, Phase3
Housing MaterialCast iron
Inlet/Outlet Size1-1/2"
Pump TypeIn Line Centrifugal
Connection StyleFlange
Max GPM @ Head115 gpm @ 3.4 ft.
Min GPM @ Head19 gpm @ 18 ft.
Series90
Voltage - Pumps208 to 230/460VAC
Face to Face Dimension13-1/2"
Loop ConfigurationClosed
Shut-Off120 ft.
Height7-1/2"
Amps8.9-8.4/4.2
Thermal Protectionyes
Housing Material - PumpsCast Iron
Length17-1/2"
IncludesCompanion Flanges and Gaskets
Manufacturers Warranty Length1 yr.
Max Temp225 Degrees F
RPM3450
Flange/Union IncludedYes
Max Operating Pressure125 psi
Drive TypeDirect
Width9-1/2"
Best Efficiency GPM @ Head60 gpm @ 96 ft.
Impeller MaterialSteel
Shaft MaterialCarbon/Ceramic
Pump MountBronze

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0965851111 @ $2383.81
