Parker

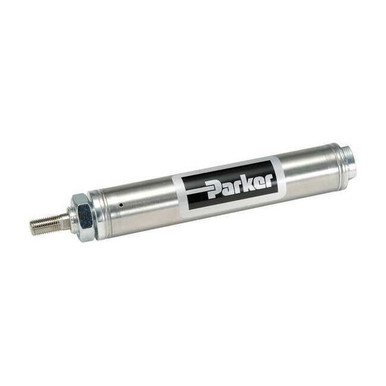

Round Air Cylinder 3/4 Inch Bore 2 Inch Stroke | 49J672 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75NSR02.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J672
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.25
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.81
jsonUrlData924526ffbdad25e5923b
length5.38
moq, multiple, tierMinQty11
MPN0.75NSR02.00
qtyInStock100
qtyInStockOverride-2
SKUG6165372
tierPrice123.84
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-2-in-stroke-round-body-single-acting-075nsr0200/i/G6165372/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingSingle Acting
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.25 in
Overall Length5.4 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke2 in
Mount, Air Cylinder MountNose
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
FinishSilver
Temp Range-10 Degrees to 165 Degrees F
Piston Material, End Cap MaterialAluminum
Dimension B0.499 in
FeaturesNon-Switch Ready
Rod Thread Size1/4-28 UNF
Spring Retraction Force3 lb
Dimension E0.62 in
Dimension Kk1/4"-28 UNF
Dimension N1, Nose Mount Thread1/2"-20
Dimension A1/2 in
Dimension J0.19 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6165372110011 @ $23.84
Grainger49J67211
Raptor SuppliesAJ2ECZ111 @ $48.22
AmazonSCB01LWKPCFH1-211 @ $42.63
Applied Industrial10222489111
sustainablesupply.comC16852351-211 @ $30.87
simsupply.comZO-G616537215711 @ $44.37
Radwell0.75NSR02.0011
