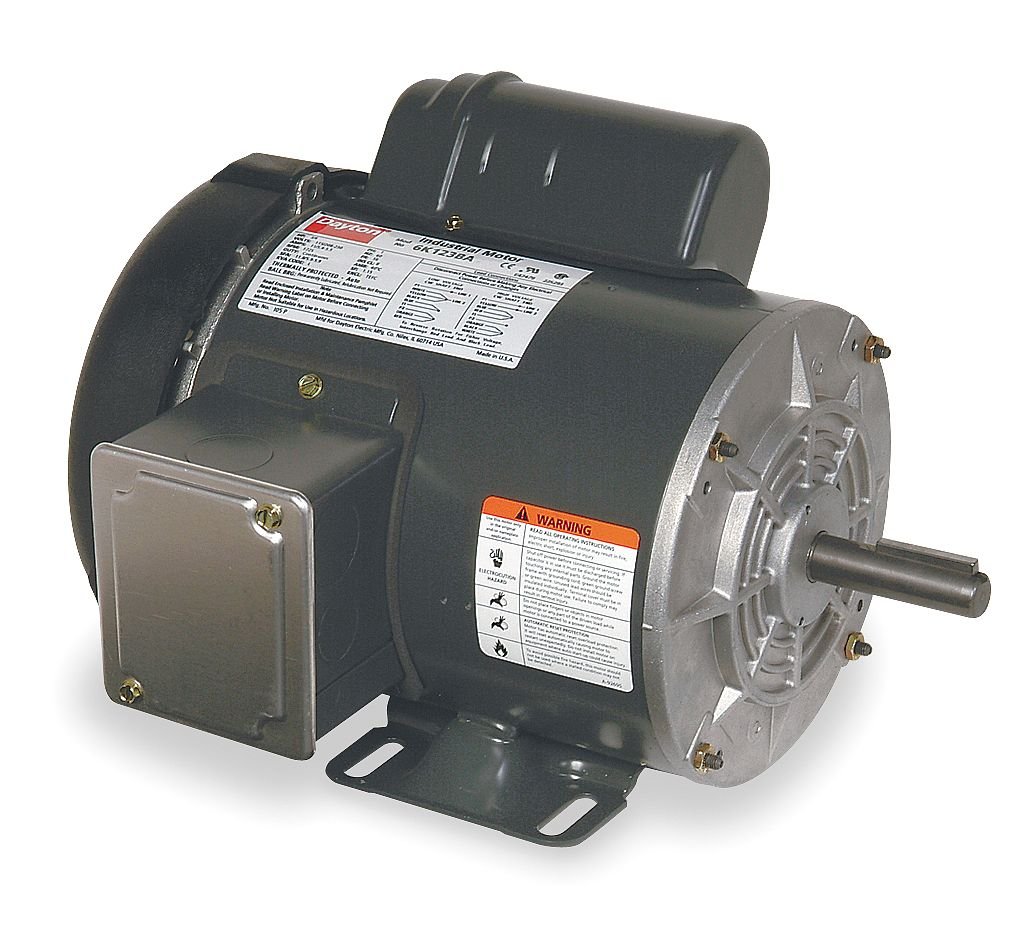

The Dayton 6K484 is a general purpose 1 HP motor that is a capacitor-start, base-mount, totally enclosed fan-cooled unit with a 56 frame. This motor is ideally suited for use in dirty, dusty, and non-hazardous applications and can be used in place of open dripproof motors.About this motor:Motor Application: General Application, Motor Design: Capacitor-Start, Motor Enclosure Design: Totally Enclosed Fan-Cooled, HP: 1, Nameplate RPM: 3450, Frame: 56, Voltage: 115/208-230, Hz: 60, Phase: 1, Full Load Amps: 11.8/6.3-5.9, Number of Speeds: 1, Mounting: Base, Motor Thermal Protection: Auto, Insulation: Class B, Service Factor: 1.00, Frame Material: Steel, Max. Ambient Temp: 40 Degrees C, Rotation: CW/CCW, Shaft Dia: 5/8", Shaft Length: 1-7/8", Overall Length: 12-3/8", Motor Shaft Design: Keyed, RPM Range: 3001-3600, Duty: ContinuousWarranty: (Years) 1WARNING: California ResidentsThis product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
