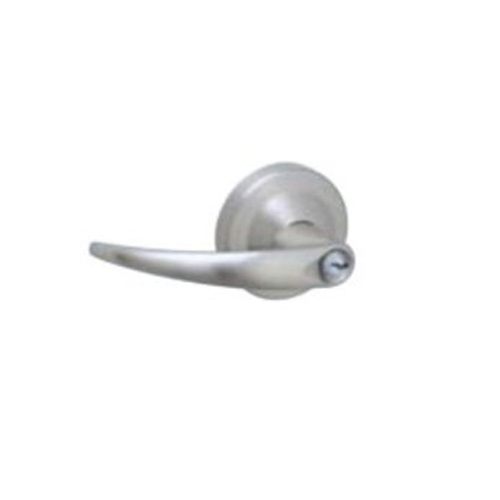

Schlage Commercial ND80PD OME 626 ND Series Storeroom C Keyway Omega with 13-247 Latch 10-025 Strike Satin Chrome Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND80PD OME 626 ND Series Storeroom C Keyway Omega with 13-247 Latch 10-025 Strike Satin Chrome Finish
atoms, moq, multiple, tierMinQty11
diameter, height, width3.4375
height_Attrib, width_AttribRose Diameter
length, Lever Length5.0625
length_AttribLever Length-Inches
MPNND80PD OME 626
qtyInStock-2
qtySourceFieldMap
tierPrice11265.1
Finish, Finish Description, Finish FamilySatin Chrome
Function80-Storeroom
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignOmega
Color Code626/US26D
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
GradeANSI/BHMA Grade 1
KeywaySchlage C
Cylinder TypeP-6 Pin Conventional (Keyed 5)
Lever StyleOME-Omega
Keyblank GroupingSCHL-C-6-1
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
HandingReversible
Projection3.3125
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
Latch Number13-247
Strike Number10-025
ADA ApprovedFalse
Keying ChargesCCAM
Strike Size1-1/4" x 4-7/8"
Knob/Lever Size5-1/16 Inch
Latch Throw1/2 Inch
Latch TypeDeadlatch
Function DescriptionOutside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
ANSI FunctionF86
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_323
Lever Style FamilyCurved Return Lever
ADA CompliantYES
Front Size1-1/8" x 2-1/4"
Latch Bolt MaterialStainless Steel
Lever Length-Inches5.0625 Inch
Handle TypeLever
Door Cross Bore2.125 Inch
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Trim MaterialPressure Cast Zinc (Lever)
Function FamilyStoreroom
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Rose Diameter3-7/16 Inch
Cylinder MaterialBrass
Product Projection3-5/16 Inch
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Strike TypeANSI Strike
Latch CornerSquare
Warranty10 year mechanical
Cylinder Type UsedConventional
Strike Lip1-3/16 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareND80PD OME 6261-211 @ $1265.10
