Order N11DR67544T12 by Burndy 25004450 Copper Stud Connector, 2 AWG-4/0 AWG - US Mega Store

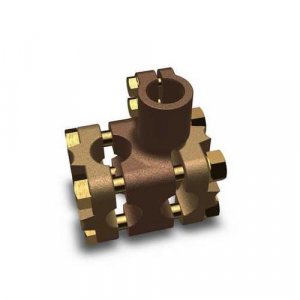

Burndy, N11DR67544T12, 25004450 Copper Stud Connector

Burndy . N11DR67544T12

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy N11DR67544T12
ConditionNEW
DimensionUnitmm
Extra Product NameOrder N11DR67544T12 by Burndy 25004450 Copper Stud Connector, 2 AWG-4/0 AWG - US Mega Store
diameter, width44.449999999999996
height127.0
height_AttribDimension - Height inch
length155.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty11
MPN, SKUN11DR67544T12
qtyInStockContact Us
snippetBurndy, N11DR67544T12, 25004450 Copper Stud Connector
tierPrice1347.1
width_AttribDimension - Pin Diameter fraction
ApplicationSubstation
Connector TypeStud Connector
MaterialCopper Alloy
Material - HardwareDURIUM Silicon Bronze
Physical Attribute - Number of Tap Conductors2
PlatedN
Plating TypeUnplated
TypeStuds
Dimension - AA Pad Orientation90 Degree; In-line
Dimension - B Length inch2.03 in
Dimension - Height inch5.00 in
Dimension - L Length Overall mm155 mm
Dimension - Length Overall inch6.12 in
Dimension - Pin Diameter fraction1-3/4 in
Dimension - Pin Diameter inch, Conductor Spacing1.75 in
Dimension - Threads per inch12
Rating - KVA230 kV
Conductor - Connection CombinationStud to Tube
Conductor - Copper Solid Size2 AWG; 1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG
Conductor - Copper Solid Size Range2 AWG-4/0 AWG
Conductor - Copper Str Size Range2 AWG-1000 kcmil
Conductor - Copper Tube Std Size3/8 IPS IPS; 1/2 IPS IPS; 3/4 IPS IPS
Conductor - Copper Tube Std Size Range3/8 IPS IPS-3/4 IPS IPS

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comN11DR67544T121Contact Us11 @ $347.10
