Schlage ND93CD SPA 626 Lock Cylindrical Lock Satin Chrome

Vandlgard Vestibule Lock Function, Grade 1, Cylindrical Lock, Less Cylinder, Sparta Lever, Satin Chrome The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant. A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage? ND family significantly exceeds BHMA Grade 1 requirements for cycle, hamme

Allegion . ND93CD SPA 626

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage ND93CD SPA 626 Lock Cylindrical Lock Satin Chrome
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish Description, Finish FamilySatin Chrome
height10.0
height_AttribCase Height
length16.375
length_AttribCase Length
MPNND93CD SPA 626
qtyInStock-2
qtySourceFieldMap
tierPrice1651.17
width14.625
width_AttribCase Width
Thickness1-5/8" - 2-1/8"
Strike Number10-025
Package Volume372.28125
Latch Number13-247
Case Width14.625"
Function93-Vestibule
Latch TypeDead Latch (Guarded)
Package Length9.5"
Lever/Knob DesignSPA - Sparta
Strike Height4-7/8"
Base MaterialBrass or Bronze
Rose/Escutcheon Design3-7/16 In. Diameter
BAA QualifiedYes
OriginMexico
Strike TypeASA
Color Code626/US26D
Case Volume2394.84375
Bolt Protection1/2"
Package Width8.25"
Case Height10"
ScrewsCombination
Package Height4.75"
Case Length16.375"
Lock Face Size2-1/4 In. x 1-1/8 In.
Cylinder TypeLess Cylinder
Latch Backset Dim2-3/4 In.
Strike Width1-1/4"
Special MarksFire rated 3 Hours {A}
Fire Rated3 Hours {A}
GradeGrade 1
HandNot Handed
ANSI FunctionF88 - Entry/Restroom
Strike Size1-1/4" x 4-7/8"
Knob/Lever Size4-15/16 Inch
Latch Throw1/2 Inch
Function DescriptionDeadlocking latch bolt by knob/levers except when outside knob/lever is locked by key inside, then by key outside.
Sub-SeriesND93CD-SPA-626
Lever Style FamilyCurved Return Lever
ADA CompliantYES
Front Size1-1/8" x 2-1/4"
Latch Bolt MaterialStainless Steel

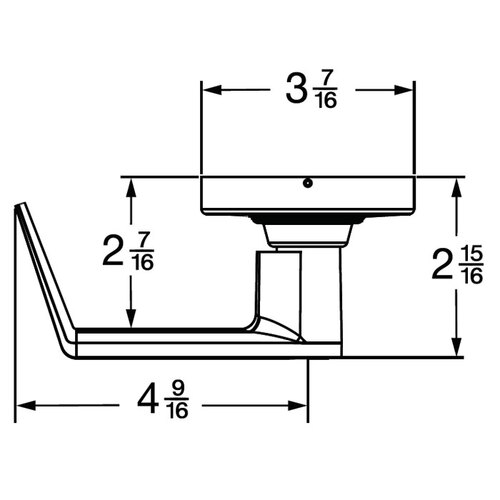

Lever Length-Inches4.5625 Inch
Handle TypeLever
Door Cross Bore2.125 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Trim MaterialPressure Cast Zinc (Lever)
Function FamilyEntry/Apartment
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Rose Diameter3-7/16 Inch
Lever StyleSPA-Sparta
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Product Projection3-1/2 Inch
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Latch CornerSquare
Backset2-3/4 Inch
Warranty10 year mechanical
Cylinder Type UsedLess Double Cylinder
Strike Lip1-3/16 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareND93CD SPA 6261-211 @ $651.17
