Parker

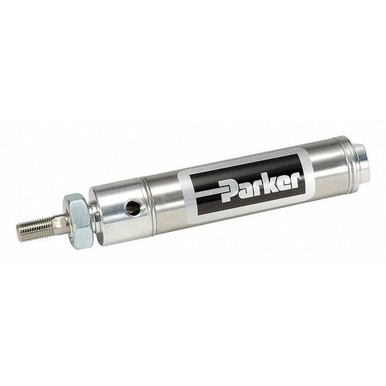

Round Air Cylinder 3/4 Inch Bore 1 Inch Stroke | 49J647 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75DSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J647
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.24
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.86
jsonUrlData924526ffbdad25e5923b
length4.47
moq, multiple, tierMinQty11
MPN0.75DSR01.00
qtyInStock30
qtyInStockOverride-2
SKUG6082623
tierPrice122.79
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-1-in-stroke-round-body-double-acting-075dsr0100/i/G6082623/
Cylinder Action, Single Acting/Double ActingDouble Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.25 in
Overall Length4.47 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountNose
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Rod Thread Size1/4-28 UNF
Dimension Kk1/4"-28 UNF
Dimension N1, Nose Mount Thread5/8"-18
Piston Material, End Cap MaterialAluminum
FinishSilver
Dimension B0.624 in
Dimension A1/2 in
Temp Range-10 Degrees to 165 Degrees F
Dimension J0.19 in
FeaturesNon-Switch Ready
Dimension E0.62 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG608262313011 @ $22.79
Raptor SuppliesAJ2EBX111 @ $45.46
AmazonB076C9HBCF11
Applied Industrial10222489411
sustainablesupply.comC16852101-211 @ $29.10
simsupply.comZO-G608262312311 @ $43.71
Radwell0.75DSR01.00121
