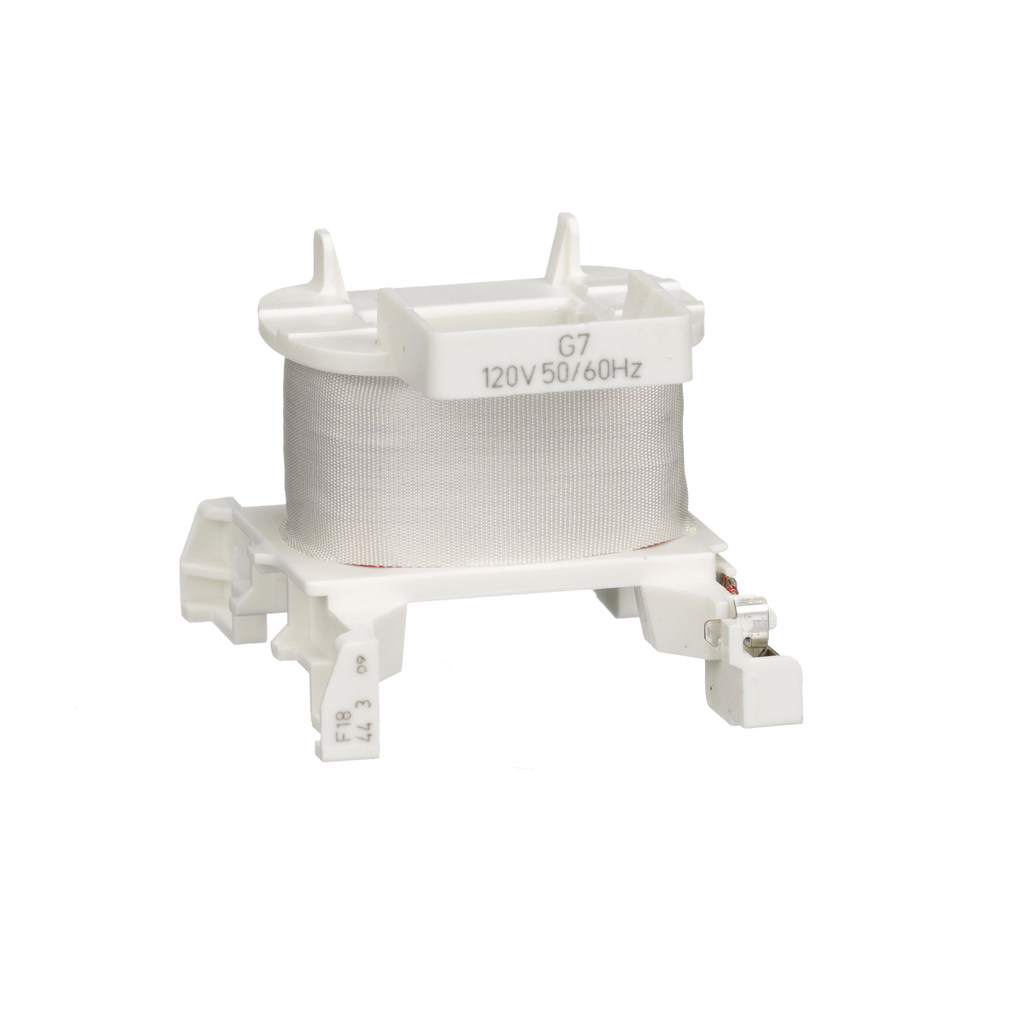

TeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 120 VAC 50/60 Hz coil | Mayer Electric

Mayer Electric Supply . LXD1G7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys D, replaement coil, for LC1D09 to 38 contactors and CAD relays, 120 VAC 50/60 Hz coil | Mayer Electric
UPC785901214090
Weight0.07
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-replaement-coil-for-LC1D09-to-38-contactors-and-CAD-relays-120-VAC-50-60-Hz-coil-785901214090
jsonUrlData27bd8fa97-8323-4e4f-9318-abb200c9d773
moq, multiple, tierMinQty11
MPNLXD1G7
qtyInStock0
SKUSQDLXD1G7
tierPrice136.99
Average Resistance150.6 Ohm 20 ?C
[Uc] Control Circuit Voltage120 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit5.4 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Product CompatibilityLC1D09...D38 || CAD || LC1DT20...DT40
Device Short NameLXD1
Warranty18 months
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 60 ?C) || operational 0.8...1.1 Uc 50 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Heat Dissipation2-3 W 50/60 Hz
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1501004
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1501004
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.07 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXD1G7111 @ $36.99
