ACTi . B22
ACTi B22 | Automatic White Balance | Digital Noise Reduction | Motion Detection Tracking | Privacy Masking | Camera Signal: Network IP. Buy Now.
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| bhphotovideo.com | ACB22 | 1 | 1 | ||
 Zoro | G5079859 | 1 | 1 | 1 @ $655.35 | |
| Grainger | 49Z438 | 1 | 1 | ||
 Adorama | ACTB22 | 1 | 1 | 1 @ $544.49 | |
| B22 | 1 | -2 | 1 | 1 @ $604.69 | |
| ACI-B22 | 1 | -2 | 1 | 1 @ $667.63 | |
 networkcamerastore.com | ACI-B22 | 1 | -2 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

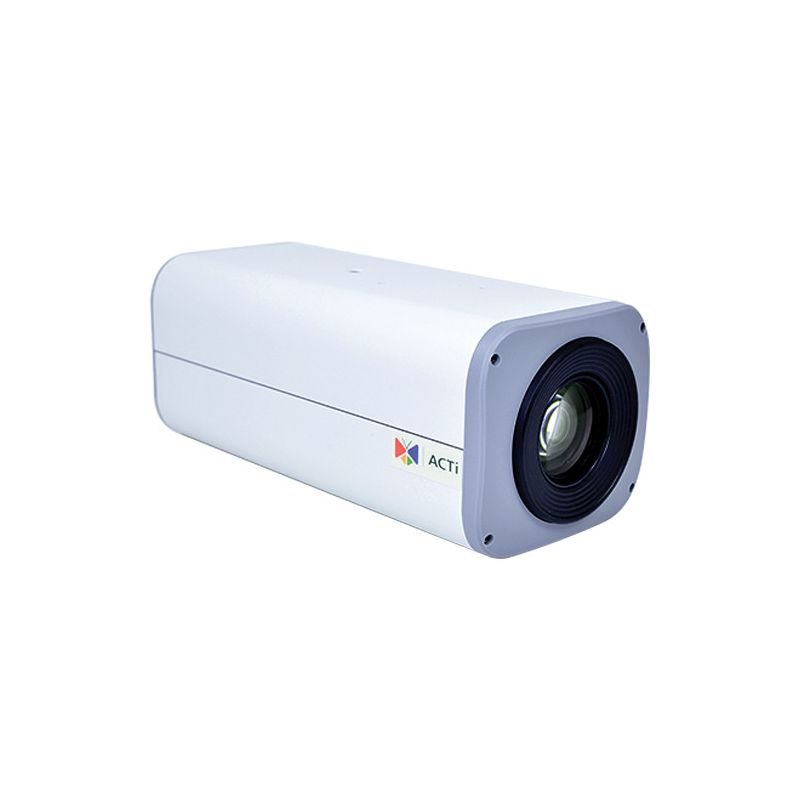

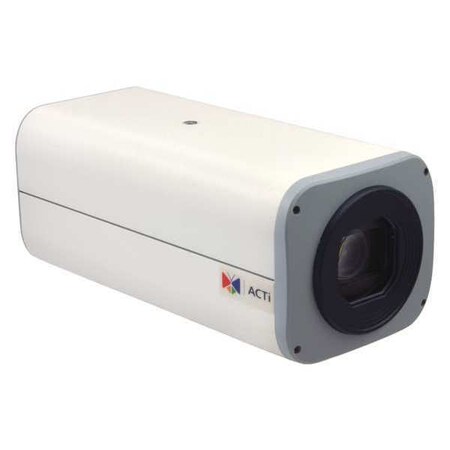

ACTi B22 5MP Zoom Box Camera with D/N, 10x Zoom Lens, f4.9-49mm/F1.6-3.0 (HOV:49.69°-5.83°), DC iris, Auto Focus, H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO
Brand: ACTi
ACTi B22 5MP Zoom Box Camera with D/N, 10x Zoom Lens, f4.9-49mm/F1.6-3.0 (HOV:49.69°-5.83°), DC iris, Auto Focus, H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO Key Features Day & Night with Standard Low Light Sensitivity 10x Zoom Lens with f4.9-49mm/F1.6-F3.0, DC iris, Auto focus Basic WDR (74 dB) Event trigger, response and notification Specifications Maximum Resolution: 5MP Application Environment: Indoor/Outdoor Image Sensor: Progressive Scan CMOS Sensor Size: 1/3.2" Effective Pixels: 2592x1944 Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400K); B/W: 0.05 lux at F1.4 (30 IRE, 2400K) Color to B/W Switch: ISP based switch, configurable Mechanical IR Cut Filter: Yes IR Sensitivity Range: 700-1100nm Horizontal Resolution: 1500 TV Lines S/N Ratio: 52dB Zoom Speed: 2.5 second (wide to tele) Lens Mount: Board Horizontal Viewing Angle: 49.69°-5.83° Pan, Tilt or Zoom protocol: Visca, Pelco-D, Pelco-P, ACTi URL command Compression: H.264 (Baseline/ Main/ High profile), MJPEG Bit Rate: 28Kbps-6Mbps (per stream) Digital Noise Reduction: 2D + 3D DNR Audio Type: 2-way, Line-in, Line-out Audio Compression: 8 kHz, 16 bit encoding, Mono, PCM, G.711 Ethernet Port: 1x RJ-45 connector GPS Position: Manual setting Profile S, Profile G, Profile T Serial Port: 1x RS-485/RS-422 Power Source: DC 12V, PoE Class 2 (IEEE802.3af) Power Consumption: 4.32W (PoE) Starting Temperature: -10°C~50°C Operating Temperature: -20°C~50°C Operating Humidity: 10%-85% RH EAN: 4710751960688 UPC: 888034007017 Dimensions (WxHxD): 3.2"x2.8"x6.9" Weight: 1.34lb
Details
- Maximum Frame Rate vs. Resolution: 15 fps at 2592 x 1944, 15 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, 15 fps at 320 x 240
- Image Enhancement: White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
- Server-based Analytics: Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection
- Security: IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
- Event Response: Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output
ACTi B22 5MP Indoor Outdoor Zoom Box Camera
Brand: ACTi
MPN :B22
Listing
| Binding | Electronics |
|---|---|
| Product group | Photography |
| Product type | CAMERA_DIGITAL |
| Part number | B22 |
| Label | ACTi |
| Manufacturer | ACTi |
Acti 5MP ZOOM BOX WITH D/ N, BASIC W Camera
Brand: ACTi
ACTi B22 5MP Zoom Box with D/N, Basic WDR, 10x Zoom lens, f4.9-49mm/F1.6-3.0 (HOV:49.69 degrees-5.83 degrees), DC iris, Auto Focus, H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO, RS-422/RS-485
Details
- ACTi B22
ACTI Corporation B22 5MP Outdoor Box Camera with D/N, Basic WDR, f4.9-49mm,10x Zoom Lens, RJ45 Connection
Brand: ACTi
ACTI CORPORATION B22 offers a 5 Megapixel Day & Night 10x Zoom Lens with f4.9-49mm/F1.6-F3.0, DC iris, Auto focus Basic WDR Event trigger, response and notification Indoor/Outdoor Color: 0.1 lux at F1.8 (30 IRE , 2400 K); B/W: 0.05 lux at F1.8 (30 IRE, 2400 K) 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode) Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Details
- Sensor: 1/3.2 "Progressive Scan CMOS - Resolution: 2592 X 1944
- Lens: 4.9-49mm varifocal - 10x optical ApertureF1.6-F3.0, Horizontal Viewing Angle49.69° - 5.83°
- Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection
- Basic WDR - Low Light Sensitivity
- IP66 Weatherproof
