ACTi . B928

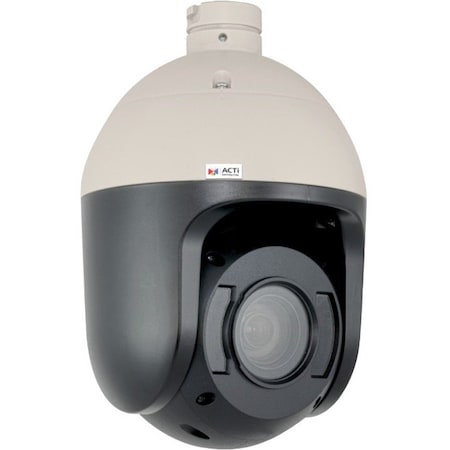

ACTi B928 5MP Video Analytics Outdoor Speed Dome Camera with SLLS, DC Iris, H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, High PoE/AC24V, IP66, IK10, DI/DO, Built-in Analytics Key Features Day & Night with Superior Low Light Sensitivity and Adaptive IR LED 36x Zoom Lens with f4.6-165.6mm/F1.55-F5.0, DC iris, Auto focus Extreme WDR (120dB), Endless Pan & Tilt Event trigger, response and notification Specifications Maximum Resolution: 5MP Image Sensor: Progressive Scan CMOS Sensor Size: 1/2.9" Effective Pixels: 3096x2202 Mechanical IR Cut Filter: Yes IR Sensitivity Range: 700-1100nm IR Working Distance: 150m Horizontal Resolution: 1750 TV Lines S/N Ratio: 56dB Horizontal Viewing Angle: 51.14°-2.17° Vertical Viewing Angle: 39.62°-1.62° Scan Panning/Tilting Speed: 1.6°-64°/second, 1.6°-32°/second Manual Panning/Tilting Speed: 0.16°-54.4°/second, 0.16°-27.2°/second Preset Panning/Tilting Speed: 0.16°-300°/second, 0.16°-150°/second Panning Range: 360° endless Tilting Range: -20°~200° PTZ Control: Remote manual control, 256 preset points, 10 preset tours, Auto scan Preset Accuracy (Panning/Tilting): ±0.265°/±0.265° Absolute Position: Yes Pan, Tilt or Zoom protocol: Visca, Pelco-D, Pelco-P, ACTi URL command Compression: H.265, H.264 (Baseline/Main/High profile), MJPEG Audio Type: 2-way, Line-in, Line-out Audio Compression: 8kHz, 16 bit encoding, Mono, PCM, G.711 Ethernet Port: 1x RJ-45 pigtail connector Power Source: AC 24V, High PoE Power Consumption: 56W (PoE, heater and fan on), 62W (AC, heater and fan on) Fan, Heater, Dehumidifier: Yes UPC: 888034011700 EAN: 4710751965379 Weight: 6.94 lb

5 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED 36x Zoom Lens with f4.6-165.6mm/ -F5.0, DC iris, Auto focus Main Features 5 Megapixel Day & Night with Superior Low Light Sensitivity and Adaptive IR LED 36x Zoom Lens with f4.6-165.6mm/ -F5.0, DC iris, Auto focus Extreme WDR Endless Pan & Tilt H.265 Compression Event trigger, response and notification General Information Name: ACTi B928 5 Megapixel Network Camera - Dome, ACTi Corporation, ACTi Category: Acti Corporation, Video Surveillance, IP Cameras, IP Dome Cameras UPC Code: 888034011700 Country of origin: Taiwan. Country of origin is subject to change. Package Contents: Speed Dome Camera High PoE injector Product Type: Network Camera Product Type: Network Camera Manufacturer Part Number: B928 Recording Formats: HD Limited Warranty: 3 Year Weight (Approximate): 6.86 lb Color Supported: Color Color Supported: Monochrome Connectivity Technology: Wired Form Factor: Dome Color Supported: Color Color Supported: Monochrome Connectivity Technology: Wired Form Factor: Dome Lens Type: Zoom Manufacturer: ACTi Corporation Product Model: B928 Product Name: Speed Dome Camera Mount Type: Gang Box Mount Mount Type: Pole Mount Mount Type: Corner Mount Mount Type: Pendant Mount Mount Type: Wall Mount Video Formats: H.265 Video Formats: H.264 Video Formats: MJPEG Optical Zoom: 36x Brand Name: ACTi Optical Zoom: 36x Brand Name: ACTi Diameter: 6.7 Height: 10.2 Maximum Video Resolution: 2592 x 1944 Maximum Focal Length: 165.60 mm Minimum Focal Length: 4.60 mm Image Sensor Type: CMOS Network (RJ-45): Yes Indoor/Outdoor: Outdoor Maximum Aperture: f/5 Maximum Video Resolution: 2592 x 1944 Maximum Focal Length: 165.60 mm Minimum Focal Length: 4.60 mm Image Sensor Type: CMOS Effective Camera Resolution: 5 Megapixel Network (RJ-45): Yes Remote Management: Yes HD Recording: Yes Night Vision Distance: 492.13 ft Indoor/Outdoor: Outdoor
