Parker

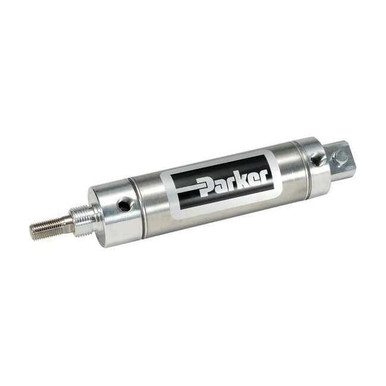

Round Air Cylinder 3/4 Inch Bore 1 Inch Stroke | 49J635 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75DPSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J635
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.23
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width1.4
jsonUrlData924526ffbdad25e5923b
length6
moq, multiple, tierMinQty11
MPN0.75DPSR01.00
qtyInStock25
qtyInStockOverride-2
SKUG6086437
tierPrice128.62
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-1-in-stroke-round-body-double-acting-075dpsr0100/i/G6086437/
Cylinder Action, Single Acting/Double ActingDouble Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cd, Dimension Cc0.25 in
Overall Length5.53 in
Rod Thread Length0.5 in
Pivot Hole Dia0.251 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountNose and Pivot
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Dimension Cb, Dimension E0.38 in
Dimension N1, Nose Mount Thread5/8"-18
Dimension Kk1/4"-28 UNF
Dimension L0.34 in
Dimension B0.624 in
FinishSilver
Piston Material, End Cap MaterialAluminum
Temp Range-10 Degrees to 165 Degrees F
Rod Thread Size1/4-28 UNF
Dimension A1/2 in
FeaturesNon-Switch Ready
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG608643712511 @ $28.62
Raptor SuppliesAJ2EBJ111 @ $61.57
AmazonSCB01LY79V1G1-211 @ $56.19
Applied Industrial10218378111
sustainablesupply.comC16851981-211 @ $39.40
simsupply.comZO-G608643711511 @ $50.92
Radwell0.75DPSR01.0011
