Hamilton

Hamilton . R-WHK-4HFSB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA09
UnitOfMeasureEA
Weight9
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height, length, width6
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Number of Wheels1
MPNR-WHK-4HFSB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9072093
tierPrice1183.07
urlhttps://www.zoro.com/hamilton-plate-caster-560-lb-load-rating-r-whk-4hfsb/i/G9072093/
Caster Sub-TypeRigid
Load Rating560 lb
Wheel Dia4 in
Wheel Width, Overall Wheel Width2 in
Load Rating Range300 to 999 lb
With Toe Plate, Includes Mounting Fasteners, NSF Listed, Leveling Caster, Non-Marking, Includes Thread GuardsNo
Wheel/Tread Hardness RatingExtra Hard
Mounting Plate Thickness1/4 in
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeRoller
Core Color, Wheel/Tread ColorSilver
Frame FinishEnamel
Outside Bolt Hole Spacing3 in x 3 in
Tire StyleTubeless
Caster Mounting TypePlate
Tread ShapeStandard
StandardsICWM

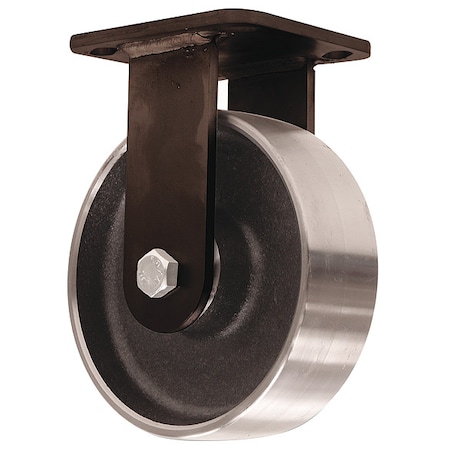

ItemHeat-Resistant Kingpinless Plate Caster
Swivel Lead1 3/4 in
Caster Brake TypeNo Brake Included
SeriesInferno
Wheel TypeFlat-Free
Wheel Core TypeSolid
Wheel Bearing TypePrecision Ball
For Axle Dia1/2 in
Wheel/Tread Hardness179 BHN
Wheel/Tread Material, Caster Frame MaterialSteel
Mounting Plate Size4 in x 4 1/2 in
Wheel Core MaterialForged Steel
Number of Mounting Holes4
FeaturesDurable, High Heat, Quiet Operation, Reliable
Frame ConstructionForged
Caster Product GroupRigid Caster
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Operating Temperature Range-50 Degrees to 200 Degrees F
Mounting Plate Bolt Hole PatternB
Frame ColorBlack
Includes Spanner Bushing, ESD ConductiveYes
Swivel ConstructionKingpinless
Swivel RadiusNone- Rigid Caster
Mounting Height5 5/8 in
TreadFlat
For Surface TypeConcrete
Mounting Bolt Dia3/8 in
Swivel Bearing Seal TypeSealed
Inside Bolt Hole Spacing2-5/8 in x 3-5/8 in
Wheel Bearing MaterialStainless Steel
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9072093111 @ $183.07
Grainger55HA0911
