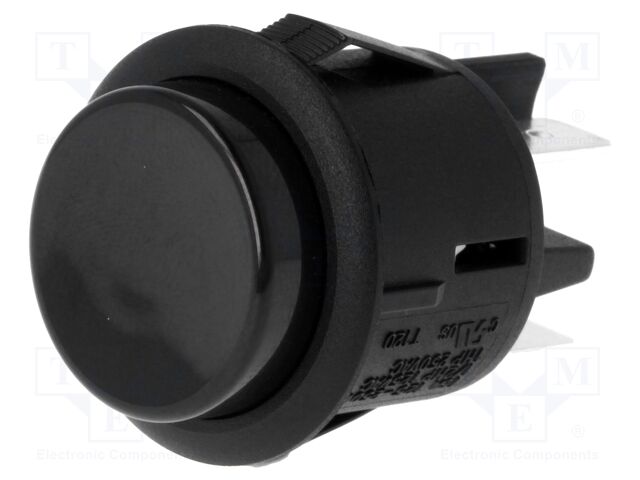

SCI R13-541A-01-BR | Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; OFF-(ON); 1.5kV

SCI R13-541A-01-BR | Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; OFF-(ON); 1.5k

SCI . R13-541A-01-BR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSCI
CategoryL1Switches and Indicators
CategoryL2Push Button Switches
CategoryL3Standard Switches
DimensionUnitmm
Extra Product NameSCI R13-541A-01-BR | Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; OFF-(ON); 1.5kV
atoms, moq, multiple, tierMinQty1, Stable positions number1
diameter, length, width25.0
jsonUrlData80bc7a921f59fd069c98d9fc7821c4d1.
jsonUrlData2ea32eec037b4584b81a2
keywordsSCI, R13-541A-01-BR, R13541A01BB, Switches and Indicators, Push Button Switches, Standard Switches
length_Attrib, width_AttribMounting hole diameter
MPNR13-541A-01-BR
qtyInStock5162
SKUR13541A01BB
snippetSCI R13-541A-01-BR | Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; OFF-(ON); 1.5k
tierMinQty25
tierMinQty320
tierMinQty4100
tierMinQty5500
tierPrice15.07
tierPrice24.02
tierPrice33.26
tierPrice42.5
tierPrice52.3
Type of switchpush-button
Number of positions2
Contacts configurationDPST-NO
AC contacts rating @R16A / 250V AC
Switching methodOFF-(ON)
Illuminationnone
Leadsconnectors 6,35mm
Operating temperature-25...70?C
Max contact resistance:50m?
Button shapeprominent,
Mounting hole diameter?25mm
Body materialpolyamide
AC test voltage1.5kV
Actuator colourblack
Panel thicknessmax. 3mm
Mountingon panel
Body dimensions?26x27mm
Flammability ratingUL94V-2
Terminals platingsilver plated
Manufacturer seriesR13-541

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMER13541A01BB1516211 @ $5.07, 5 @ $4.02, 20 @ $3.26, 100 @ $2.50, 500 @ $2.30
