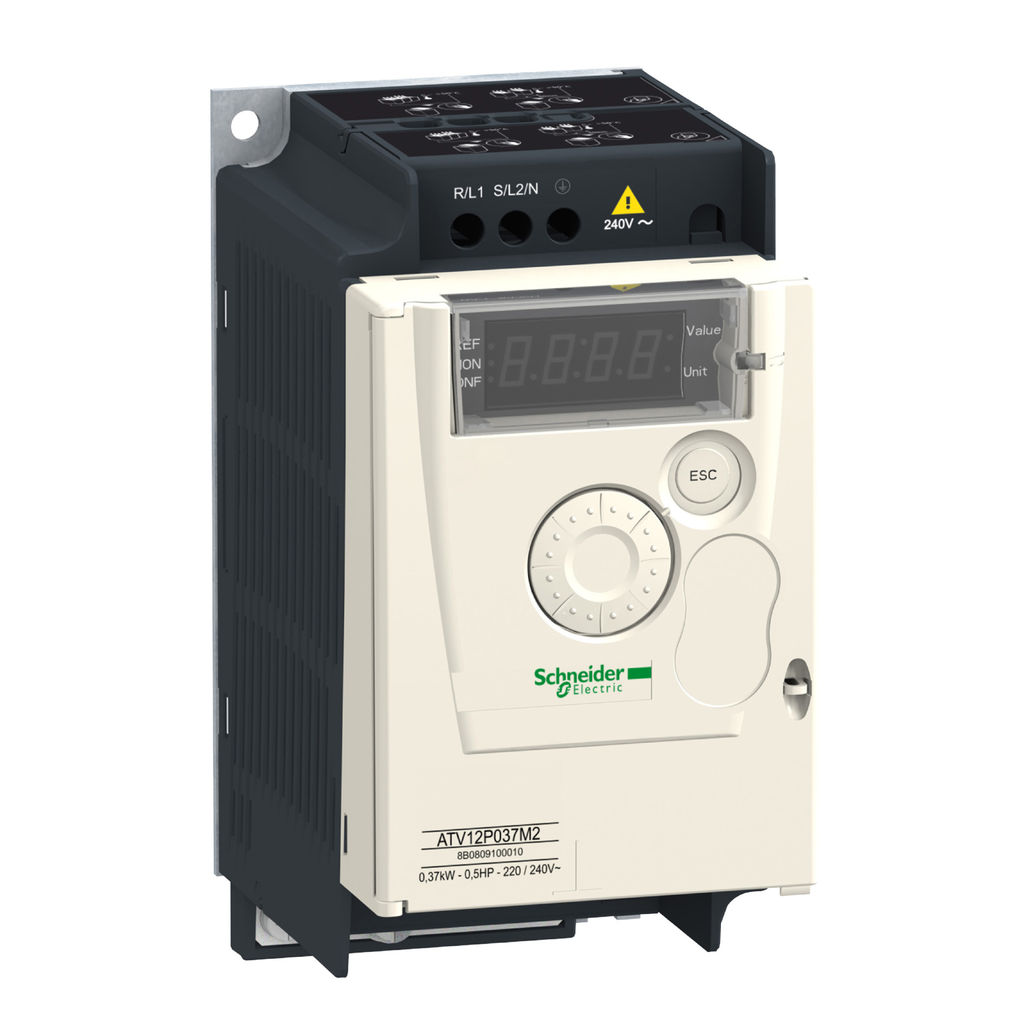

variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 1ph - on base plate | Mayer Electric

Mayer Electric Supply . ATV12P037M2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product Namevariable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 1ph - on base plate | Mayer Electric
UPC785901982074
Weight0.7
WeightUnitkg
Weight_AttribNet Weight
depth, length102.2
height143.0
height_AttribHeight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Variable-speed-drive-ATV12-0-37kW-0-55hp-200-240V-1ph-on-base-plate-785901982074
jsonUrlData2b5e3091c-45a6-42e1-90d4-abd20061da26
length_AttribDepth
moq, multiple, tierMinQty1, Relay Output Number, Analogue Input Number, Analogue Output Number1
MPNATV12P037M2
qtyInStock0
SKUSQDATV12P037M2
tierPrice1338.84
width72.0
width_AttribWidth
Range Of ProductAltivar 12
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP20
Motor Power Kw0.37 kW
[Us] Rated Supply Voltage200...240 V - 15...10 %
Communication Port ProtocolModbus
Mounting Modecabinet mount
Nominal Output Current, Base Load Current At High Overload2.4 A
Product Specific Applicationsimple machine
Emc Filterintegrated
Maximum Horse Power Rating0.55 hp
Supply Frequency50/60 Hz +/- 5 %
Warranty18 months
Prospective Line Isc1 kA
Network Frequency50-60 Hz
Maximum Output Frequency, Nominal Switching Frequency4 kHz
With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Speed Monitor (Ssm), 4 Quadrant Operation Possible, With Safety Function Safe Torque Off (Sto), With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Programmable Logic, Brake Chopper Integrated, With Sft Fct Safe Stop 2 (Ss2), With Safety Function Safe Stop 1 (Ss1), With Safety Function Safely Limited Speed (Sls)false
Height143 mm
Power Dissipation In Wnatural 27.0 W
Line Current5.9 A 100 V heavy duty) || 4.9 A 120 V heavy duty)
Acceleration And Deceleration RampsU || linear from 0 to 999.9 s || S
Time Constant20 ms +/- 1 ms for reference change
Maximum Output Voltage240 V
Speed Drive Output Frequency0.5-400 Hz
Transmission FrameRTU
Asynchronous Motor Control Profilesensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
Transient Overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
Data Format8 bits, configurable odd, even or no parity
Relative Symmetric Network Frequency Tolerance5 %
Apparent Power1.2 kVA 240 V heavy duty)
Net Weight0.7 kg
Type Of Polarizationno impedance
Frequency Resolutionanalog input converter A/D, 10 bits || display unit 0.1 Hz
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Maximum Transient Current3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
Communication Serviceread holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
Connector Type1 RJ45
Motor Slip Compensationpreset in factory || adjustable
Discrete Output Number, Pollution Degree2
Physical Interface2-wire RS 485
Method Of Accessserver Modbus serial
Insulationelectrical between power and control
Tightening Torque0.8 N.m
Number Of Addresses1-247
Continuous Output Current2.4 A 4 kHz
Speed Range1-20
Discrete Input Number4
Linearity Error+/- 0.3 % of maximum value analogue input
Quantity Per Setset of 1
Width72 mm
Transmission Rate9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Braking To Standstillby DC injection
Depth102.2 mm
Sampling Duration20 ms +/- 1 ms logic input || 10 ms analogue input
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP090201EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI100204EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsNOM || CSA || C-tick || UL || GOST || RCM || KC
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
StandardsUL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
Ambient Air Temperature For Operation-10-40 ?C without derating || 40-60 ?C with current derating 2.2 % per ?C
Vibration Resistance1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
Shock Resistance15 gn 11 ms EN/IEC 60068-2-27
MarkingCE
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s? at 13...200 Hz
Noise Level0 dB
Regulation Loopadjustable PID regulator
Ambient Air Temperature For Storage-25-70 ?C
Relative Humidity5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Assembly Styleon base plate
Operating Positionvertical +/- 10 degree
