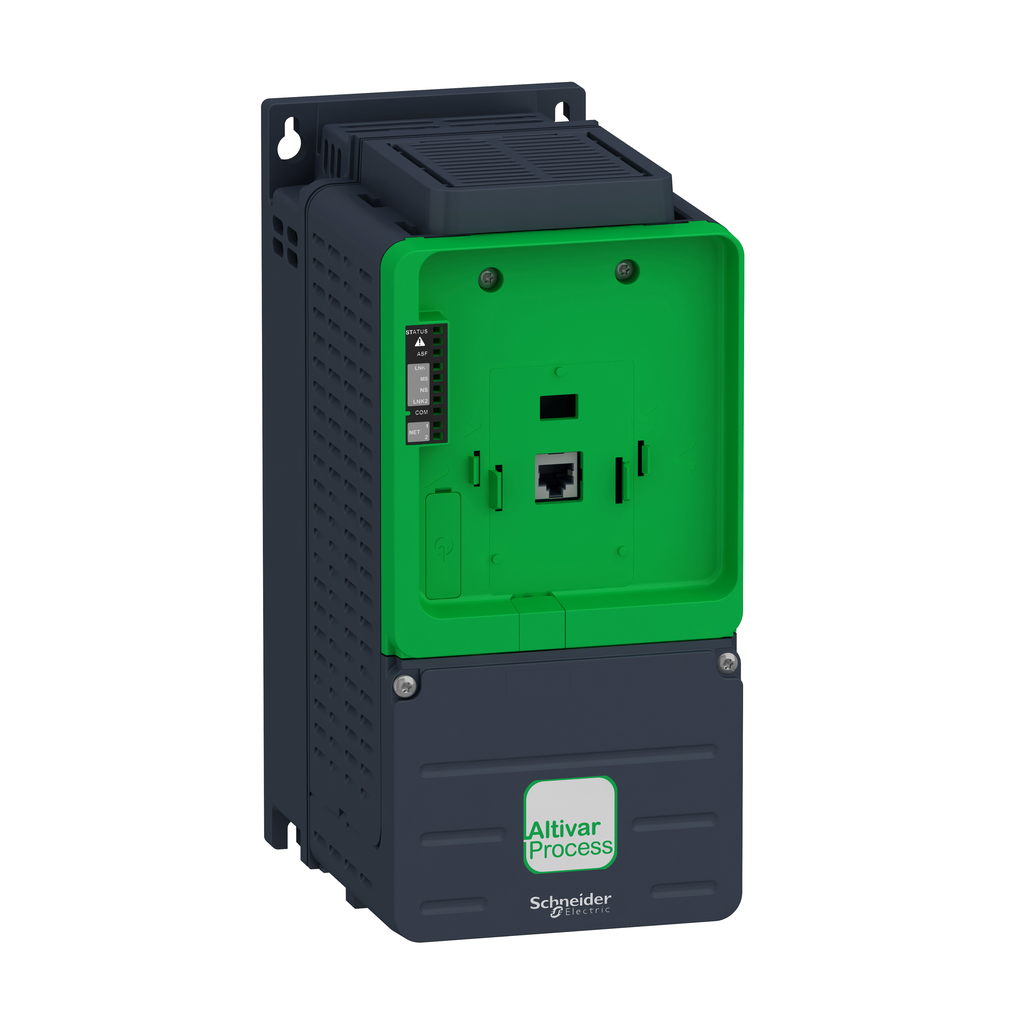

Variable speed drive, Altivar Process ATV900, ATV930, 2,2 kW, 380...480 V, cabinet Integration, IP20, for US | Mayer Electric

SQUARE D . SQDATV930U22N4ZU

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Process ATV900, ATV930, 2,2 kW, 380...480 V, cabinet Integration, IP20, for US | Mayer Electric
UPC3606489740207
depth, length196.0
height285.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-Altivar-Process-ATV900-ATV930-2-2-kW-380-480-V-cabinet-Integration-IP20-for-US-SQDATV930U22N4ZU
jsonUrlData205dfe19c-c2e0-446f-a14e-aeea0054cdab
length_AttribDepth
moq, multiple, tierMinQty1, Quantity Per Set1
MPN, SKUSQDATV930U22N4ZU
qtyInStock0
tierPrice11709.02
width130.0
width_AttribWidth
Prospective Line Isc50 kA
Network Frequency50-60 Hz
Degree Of ProtectionUL type 12
Maximum Output Frequency599 Hz
Product Destinationsynchronous motors || asynchronous motors
Line Current4.3 A 380 V normal duty) || 3.1 A 380 V heavy duty) || 3.8 A 480 V normal duty) || 2.9 A 480 V heavy duty)
Phase3 phase
Range Of ProductAltivar Process ATV900
Asynchronous Motor Control Profileconstant torque standard || optimized torque mode || variable torque standard
Variantstandard version || with braking chopper
Product Or Component Typevariable speed drive
Apparent Power3.2 kVA 480 V normal duty) || 2.4 kVA 480 V heavy duty)
Ip Degree Of ProtectionIP21
Motor Power Kw2.2 kW normal duty || 1.5 kW heavy duty
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Maximum Transient Current6.7 A 60 s normal duty) || 6 A 60 s heavy duty)
[Us] Rated Supply Voltage380...480 V - 15...10 %
Communication Port ProtocolModbus TCP || EtherNet/IP || Modbus serial
Mounting Modecabinet mount
Discrete Input Logic16 preset speeds
Continuous Output Current5.6 A 4 kHz normal duty || 4 A 4 kHz heavy duty
Product Specific Applicationprocess for industrial
Nominal Switching Frequency4 kHz
Emc Filterintegrated || with EMC plate option
Maximum Horse Power Rating3.0 hp normal duty || 2.0 hp heavy duty
Device ApplicationIndustrial Application
Synchronous Motor Control Profilepermanent magnet motor || synchronous reluctance motor
With Safety Function Safe Brake Management (Sbc/Sbt), 4 Quadrant Operation Possible, With Safety Function Safe Torque Off (Sto), Brake Chopper Integrated, With Safety Function Safe Stop 1 (Ss1), With Safety Function Safely Limited Speed (Sls)true
Height285 mm
Power Dissipation In Wnatural convection 30 W 380 V 4 kHz || forced convection 60 W 380 V 4 kHz
Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s
Maximum Output Voltage480.0 V
Base Load Current At High Overload4.0 A
Transmission FrameRTU
With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Programmable Logic, With Sft Fct Safe Stop 2 (Ss2)false
Relay Output Number, Analogue Input Number3
Exchange Modehalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Local Signallinglocal diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)
Data Format8 bits, configurable odd, even or no parity Modbus serial
Relative Symmetric Network Frequency Tolerance5 %
Base Load Current At Low Overload5.6 A
Type Of Polarizationno impedance
Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 ?C analog output
Input CompatibilityDI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Connector Type2 RJ45 || 1 RJ45
Motor Slip Compensationcan be suppressed || not available in permanent magnet motor law || adjustable || automatic whatever the load
Discrete Output Number, Analogue Output Number2
Physical InterfaceEthernet || 2-wire RS 485
Transmission Rate10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Method Of Accessslave Modbus TCP
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Number Of Addresses1-247
Isolationbetween power and control terminals
Discrete Input Number10
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
Width130 mm
Braking To Standstillby DC injection
Depth196 mm
Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Sampling Duration2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP2007009EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI2007009EN
UpgradeabilityUpgraded components available
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCSA || UL || T?V
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
