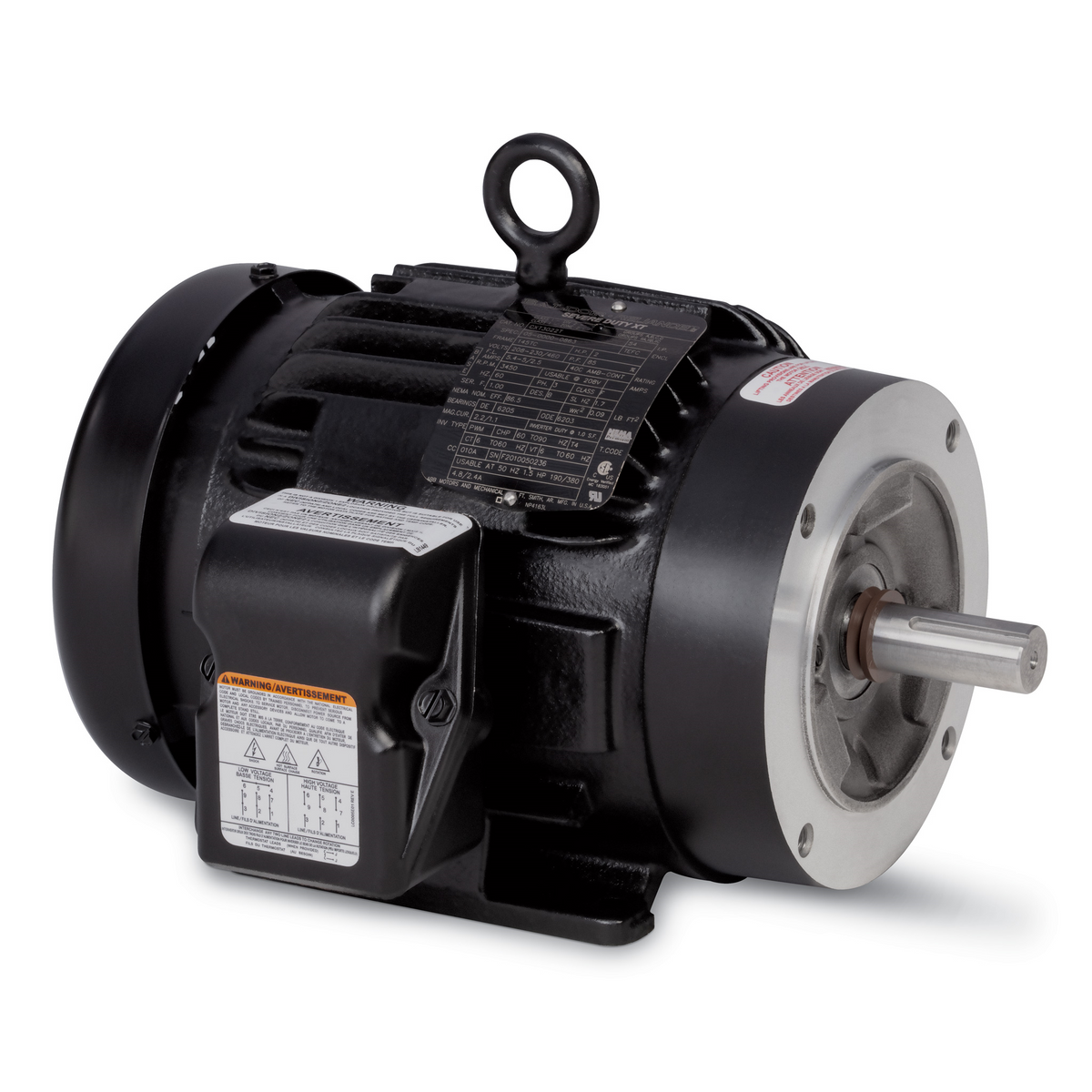

Baldor XT30156T Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 1-1/2RPM: 1170Volts: 208-230/460Amps: 5.2/5/2.5Hz: 60Phase: 3Frame: 182TEnclosure Material: IronMounting: RigidShaft Diameter: 1.125"Overall Length: 15.23"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Efficiency: 87.5%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cy
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor XT30156T Three Phase Severe Duty XT Motor |
| Voltage, Volts | 208-230/460 |
| Weight | 99 |
| WeightUnit | lbs |
| diameter, height, width | 1.125 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 15.23 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | XT30156T |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 892.91 |
| Product Type | Three Phase |
| HP | 1-1/2 |
| RPM | 1170 |
| Amps | 5.2/5/2.5 |
| Hz | 60 |
| Phase | 3 |
| Frame | 182T |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 1.125" |
| Overall Length | 15.23" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Efficiency | 87.5% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 06-0000-0807 |
| Ship Weight | 99 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT30156T | 1 | -2 | 1 | 1 @ $892.91 |
