VIAIR 10019 12-Volt 100C Air Compressor Kit w/ Omega Mounting Bracket 15% Duty Cycle @ 100 PSI

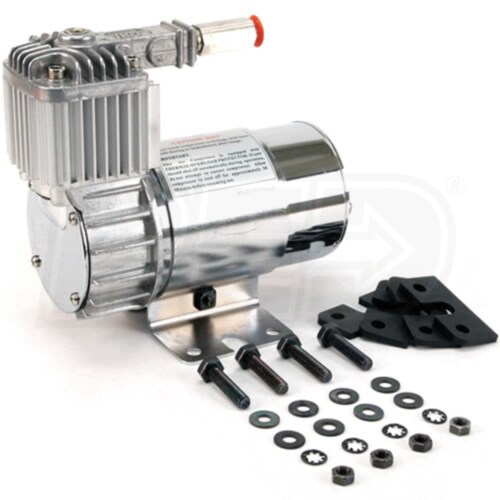

Overview The 100C with Omega Style Bracket is a bare compressor that comes standard with a chrome motor housing and chrome end plates. Insulated wiring is pre-installed. VIAIR 10019 does not come equipped with a leader hose but does come with an inline check valve. Features Permanent Magnetic Motor Inline Check Valve Oil-less Design High Performance PTFE Piston Ring Stainless Steel Valves Moisture and Dust Resistant Gearless Direct Drive Motor Anodized Aluminum Alloy Cylinder Automatic Reset Thermal Overload Protector Specifications 12-Volt Duty Cycle: 15% @ 100 PSI Max. Working Pressure: 130 PSI Min. Ambient Temp: -40degF Max. Ambient Temp: 158degF Amp Draw: 14 Amps Dimensions: 6.00" L x 3.50" W x 5.30"H Net Weight: 4.75 lbs. Tank Fill Rates 0.5 Gallon Air Tank Fill Rate 0 To 105 PSI 45 Seconds 85 To 105 PSI 9 Seconds 0 to 120 PSI 55 Seconds 90 To 120 PSI 15 Seconds 1 Gallon Air Tank Fill Rate 0 To 105 PSI 1 Min. 28 Seconds 85 To 105 PSI 19 Seconds 0 To 120 PSI 1 Min. 46 Seconds 90 To 120 PSI 30 Seconds,
