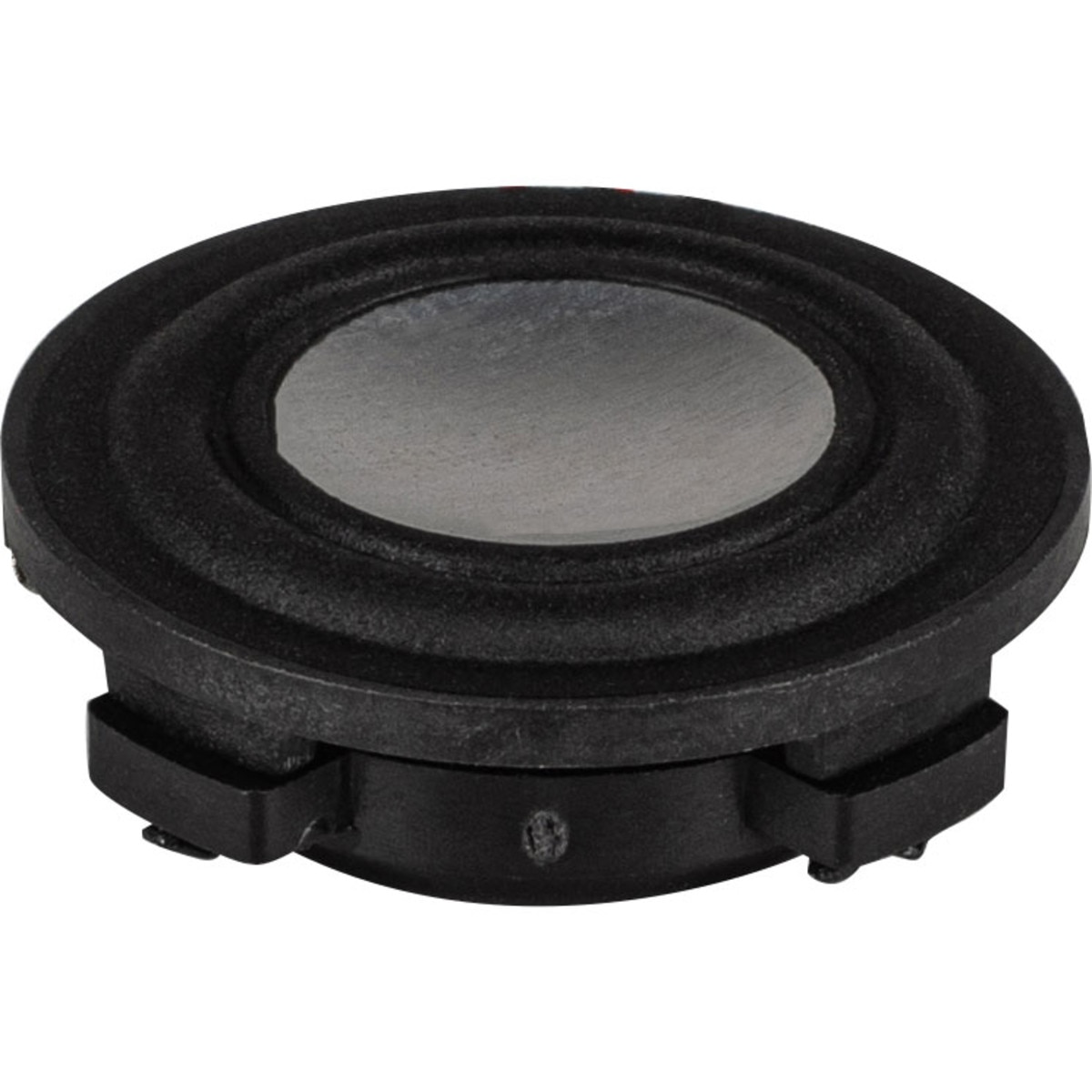

Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Neodymium Driver 4 Ohm

Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Neodymium Driver 4 Ohm. Part Number: 264-978 by Tang Band.

Tang Band . W1-2361S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Neodymium Driver 4 Ohm
UPC848864066639
Weight0.05
WeightUnitlbs
depth, length0.361
diameter, height, width875.0
height_Attrib, width_AttribBaffle Cutout Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW1-2361S
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-978
snippetTang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Neodymium Driver 4 Ohm. Part Number: 264-978 by Tang Band.
tierMinQty24
tierMinQty310
tierPrice121.98
tierPrice220.88
tierPrice319.78
Unit of MeasureEach
Nominal Diameter1"
Power Handling (RMS)1 Watts
Power Handling (MAX)2 Watts
Impedance4?
Frequency Response220 to 20,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter13.28"
Resonant Frequency (Fs), Vented F3220Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.0036mH
Mechanical Q (Qms)0.35
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.18
Compliance Equivalent Volume (Vas)0.0116ft?
Mechanical Compliance of Suspension (Cms)3.75mm/N
BL Product (BL)1.33T?m
Diaphragm Mass Inc Airload (Mms)0.13g
Maximum Linear Excursion (Xmax)0.25mm
Surface Area of Cone (Sd)3.6cm?
Cone MaterialAluminum
Surround MaterialSantoprene?
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter0.984"
Baffle Cutout Diameter.875"
Depth0.361"
Vented Volume0.01ft?

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com264-9781-211 @ $21.98, 4 @ $20.88, 10 @ $19.78
