Zoro Select

Zoro Select . L-POEV 102KA-12-FI-SB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku491A21
UPCNone
UnitOfMeasureEA
Weight1.91
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
height2.7
jsonUrlData924526ffbdad25e5923b
length5.5
moq, multiple, tierMinQty1, Number of Wheels1
MPNL-POEV 102KA-12-FI-SB
qtyInStock23
qtyInStockOverride-2
SKUG3575063
tierPrice129.59
urlhttps://www.zoro.com/zoro-select-standard-plate-caster-swivel-400-lb-l-poev-102ka-12-fi-sb/i/G3575063/
width6.2
Caster Brake Included, Thread Guards, Non-Marking, Includes Thread Guards, Caster Temp Range AvailableYes
Caster Load Rating RangeMedium Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread Shape, TreadStandard
Caster Wheel/Tread MaterialEasyRoll Elastic Solid Rubber
Load Rating, Load Capacity400 lb
Overall Height5-1/8 in
Wheel Dia4 in
Wheel Width1-1/4 in
Durometer, Wheel/Tread Hardness65 Shore A
Outside Bolt Hole Spacing1-3/4 in x 3-1/16 in
Core ColorBlack
Mounting Bolt Dia5/16 in
Load Rating Range-
Caster Min Temp-15 Degrees F
Caster Max Temp175 Degrees F
IncludesStop-Fix Total-Lock Brake
Extended Lead, ESD ConductiveNo
Wheel Bearing Type, Caster Wheel BearingsPrecision Ball
Caster Plate Hole Pattern, Mounting Plate Bolt Hole PatternC
Caster Swivel Lock TypeTotal-Lock
Inside Bolt Hole Spacing1-3/4 in x 2-13/16 in
Wheel/Tread Hardness RatingSoft
Wheel Core Material, Caster Core MaterialNylon
Wheel Color, Tread Color, Wheel/Tread ColorBlue
FeaturesFloor Protective, Noise Reduction
Mounting Height5 1/8 in
Caster Brake TypeTotal Lock Brake
StandardsRoHS, ICWM
Caster Raceway, Swivel Raceway TypeDouble Ball
Mounting Plate Size2 1/2 in x 3 5/8 in
Swivel Radius3-7/16 in
ApplicationRetail, Industrial, Commercial
Frame FinishZinc Plated
Caster Frame MaterialSteel
Number of Mounting Holes4
Replacement WheelMfr. No. POEV 102/10K-SB
Caster Plate Thickness0.138 in
Swivel Lock TypeTotal Lock
Swivel ConstructionKingpin
Caster Temp Range-15 Degrees To 175 Degrees F
System of MeasurementInch
Caster Plate Size2-1/2 in x 3-5/8 in
Caster Product GroupSwivel Caster With Brake

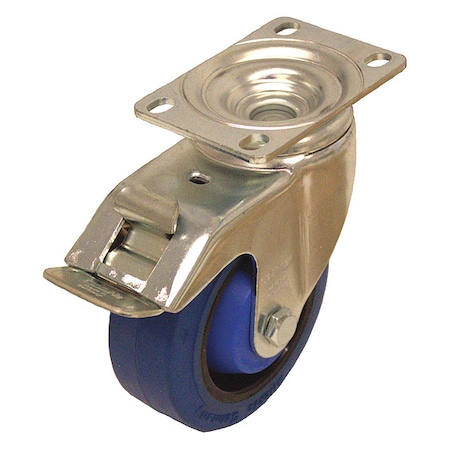

ItemSwivel Plate Caster With Brake
Wheel/Tread MaterialRubber
Caster Mounting TypePlate
Resistant ToHigh Chemical Resistance To Many Aggressive Substances, Except Oils
AccessoriesOptional: RI-03.12 (Directional Lock)
Caster Break TypeStop Fix Brake (Total Lock)
SeriesL Series
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG357506312311 @ $29.59
grainger.caWWG491A21111 @ $48.54
