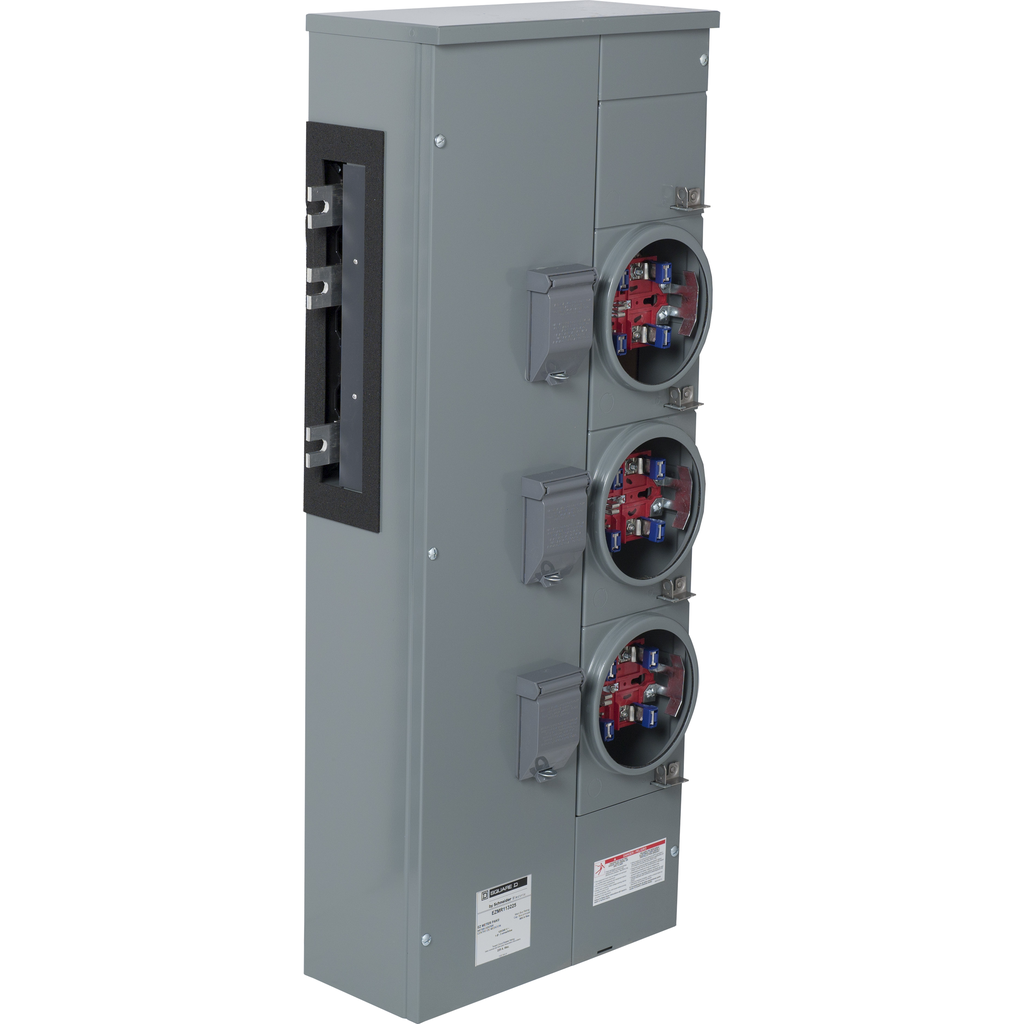

Branch unit, EZ Meter-Pak, 225A, 3 sockets, 120/240 VAC, no bypass, ringless, 1200A Al/Cu busbar | Mayer Electric

Mayer Electric Supply . EZMR113225X

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameBranch unit, EZ Meter-Pak, 225A, 3 sockets, 120/240 VAC, no bypass, ringless, 1200A Al/Cu busbar | Mayer Electric
UPC785901569541
depth, length8.09
height43.41
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Branch-unit-EZ-Meter-Pak-225A-3-sockets-120-240-VAC-no-bypass-ringless-1200A-Al-Cu-busbar-785901569541
jsonUrlData2b15872fa-3832-40bc-b2f4-abd200621281
length_AttribDepth
moq, multiple, tierMinQty11
MPNEZMR113225X
qtyInStock0
SKUSQDEZMR113225X
tierPrice11418.59
width17.38
width_AttribWidth
Range Of ProductMeter-Pak
Bypass Typeno bypass
Meter Socket Typeringless
Number Of Meter Sockets3
Line Rated Current225 A
Bus Rated Current1200 A
Product Or Component TypeMeter Center Branch Unit
Number Of Jaws5 without jaw release
Warranty18 months
Product CertificationsUL Listed
Height43.41 in
Phase1 phase in || 1 phase out
Nema Degree Of ProtectionNEMA 3R
Device Mountingsurface
[Ue] Rated Operational Voltage120/240 V AC
Materialaluminium/copper busbar
Enclosure Materialsteel
Wiring Configuration3-wire
Width17.38 in
Depth8.09 in
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEZMR113225X111 @ $1418.59
