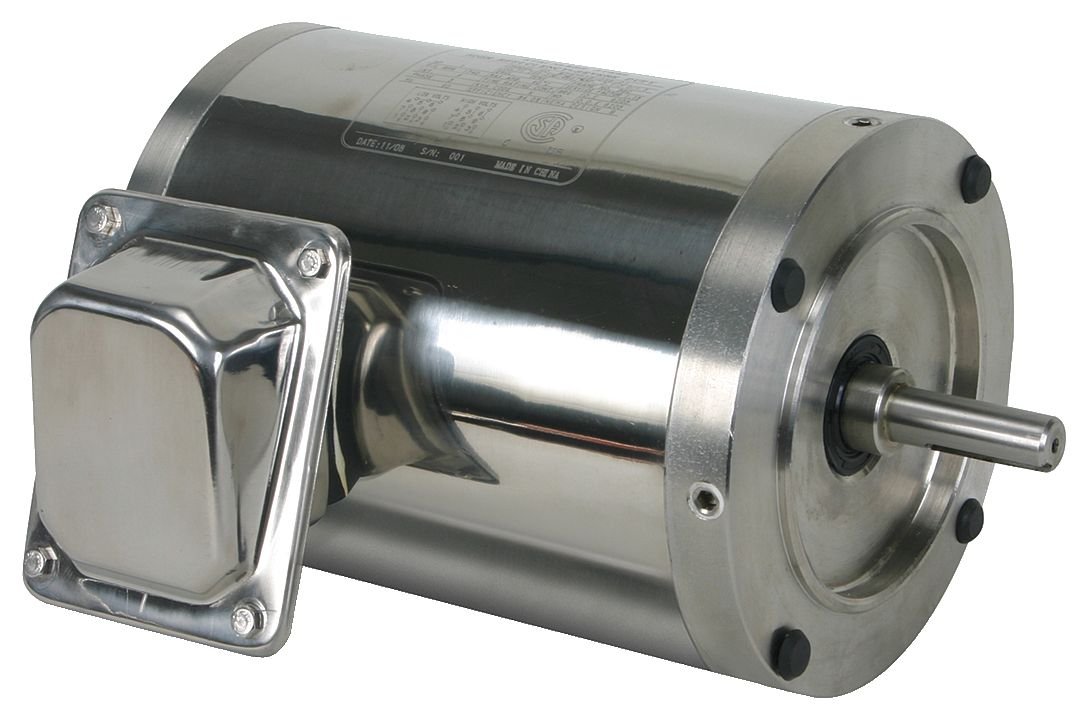

Washdown Motor, Motor Application Washdown, Motor Type 3-Phase, Enclosure Totally Enclosed Nonventilated, HP 1, Nameplate RPM 1740, Frame 56C, Rotation CW/CCW, Voltage 208-230/460, Full Load Amps 3.1-3.0/1.5, Phase 3, Hz 60, Mounting Face, Bearings Ball, Frame Material Stainless Steel, Thermal Protection None, Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Shaft Dia. 5/8", Shaft Length 1-7/8", Overall Length 11-5/16", Insulation Class F, RPM Range 1701-1800, Duty Continuous, Shaft Material 300 Series Stainless Steel, Drain Plugs 4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor), Endshields 300 Series Stainless Steel, Nominal Efficiency 81.5%, Standards UL Component Recognized, CSA Certified, CE CompliantWARNING: California ResidentsThis product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
