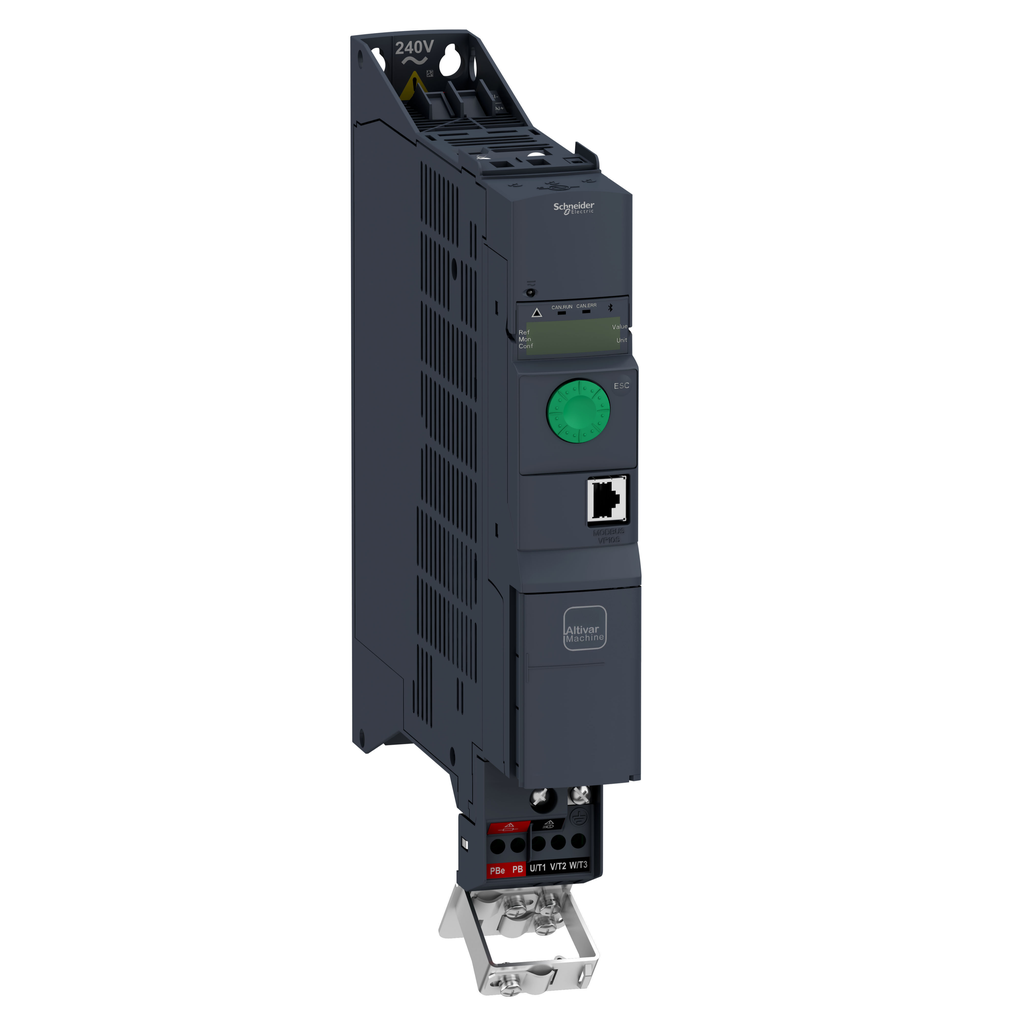

variable speed drive, Altivar Machine ATV320, 0.37kW, 380 to 500V, 3 phases, book | Mayer Electric

Shop SQUARE D at Mayer. SQD ATV320U04N4B ATV320 Book drive

Mayer Electric Supply . ATV320U04N4B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product Namevariable speed drive, Altivar Machine ATV320, 0.37kW, 380 to 500V, 3 phases, book | Mayer Electric
UPC3606480966385
Weight2.5
WeightUnitkg
Weight_AttribNet Weight
depth, length245.0
height325.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-SQD-ATV320U04N4B-ATV320-Book-drive-785901723752
jsonUrlData2349a7eaf-fb27-416a-ad07-abd20061dace
keywordsSQUARE D, Mayer SQUARE D, 785901723752, ATV320U04N4B
length_AttribDepth
moq, multiple, tierMinQty1, Analogue Output Number1
MPNATV320U04N4B
qtyInStock0
SKUSQDATV320U04N4B
snippetShop SQUARE D at Mayer. SQD ATV320U04N4B ATV320 Book drive
tierPrice1713.18
width45.0
width_AttribWidth
UpgradeabilityUpgraded components available
China Rohs RegulationX
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1711005EN
Circularity ProfileENVEOLI1711005EN
Braking To Standstillby DC injection
Base Load Current At High Overload4 A
Power Dissipation In Wfan 23.0 W 380 V 4 kHz
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Discrete Output Number, Analogue Input Number3
Net Weight2.5 kg
Acceleration And Deceleration Rampslinear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
With Safety Function Safe Stop 1 (Ss1), 4 Quadrant Operation Possible, With Safety Function Safe Torque Off (Sto), With Safety Function Safely Limited Speed (Sls), Brake Chopper Integratedtrue
With Safety Function Safe Position (Sp), With Safety Function Safe Programmable Logic, With Safety Function Safely Limited Position (Slp), With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Direction (Sdi), With Safety Function Safe Operating Stop (Sos), With Safety Function Safe Speed Monitor (Ssm), With Sft Fct Safe Stop 2 (Ss2)false
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Protection Typeinput phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Maximum Output Frequency0.599 kHz
Relative Symmetric Network Frequency Tolerance5 %
Width45.0 mm
Height325.0 mm
Nominal Switching Frequency4 kHz
Depth245.0 mm
Line Current2.1 A 380 V heavy duty) || 1.6 A 500 V heavy duty)
Motor Slip Compensationautomatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Method Of Accessslave CANopen
Maximum Output Voltage500 V
Network Frequency50-60 Hz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Discrete Input Number7
Discrete Input Logicpositive logic (source) || negative logic (sink)
Apparent Power1.4 kVA 500 V heavy duty)
Synchronous Motor Control Profilevector control without sensor
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Discrete Input TypeSTO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Transient Overtorque170-200 % of nominal motor torque
Prospective Line Isc5 kA
Motor Power Kw0.37 kW heavy duty
Variantstandard version
[Us] Rated Supply Voltage380...500 V - 15...10 %
Product Specific Applicationcomplex machines
Emc FilterClass C2 EMC filter integrated
Range Of ProductAltivar Machine ATV320
Communication Port ProtocolModbus serial || CANopen
Ip Degree Of ProtectionIP20
Nominal Output Current1.5 A
Mounting Modecabinet mount
Format Of The Drivebook
Product Or Component Typevariable speed drive
Overvoltage CategoryIII
Ambient Air Transport Temperature, Ambient Air Temperature For Storage-25-70 ?C
Pollution Degree2
Maximum Acceleration Under Shock Impact (During Operation)150 m/s? at 11 ms
StandardsEN/IEC 61800-5-1
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Operating Positionvertical +/- 10 degree
Volume Of Cooling Air9.4 m3/h
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s? at 13...200 Hz
Ambient Air Temperature For Operation-10-50 ?C without derating || 50-60 ?C with derating factor
Product CertificationsCE || ATEX || NOM || GOST || EAC || RCM || KC
MarkingCE || ATEX || UL || CSA || EAC || RCM
Regulation Loopadjustable PID regulator
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDATV320U04N4B111 @ $713.18
