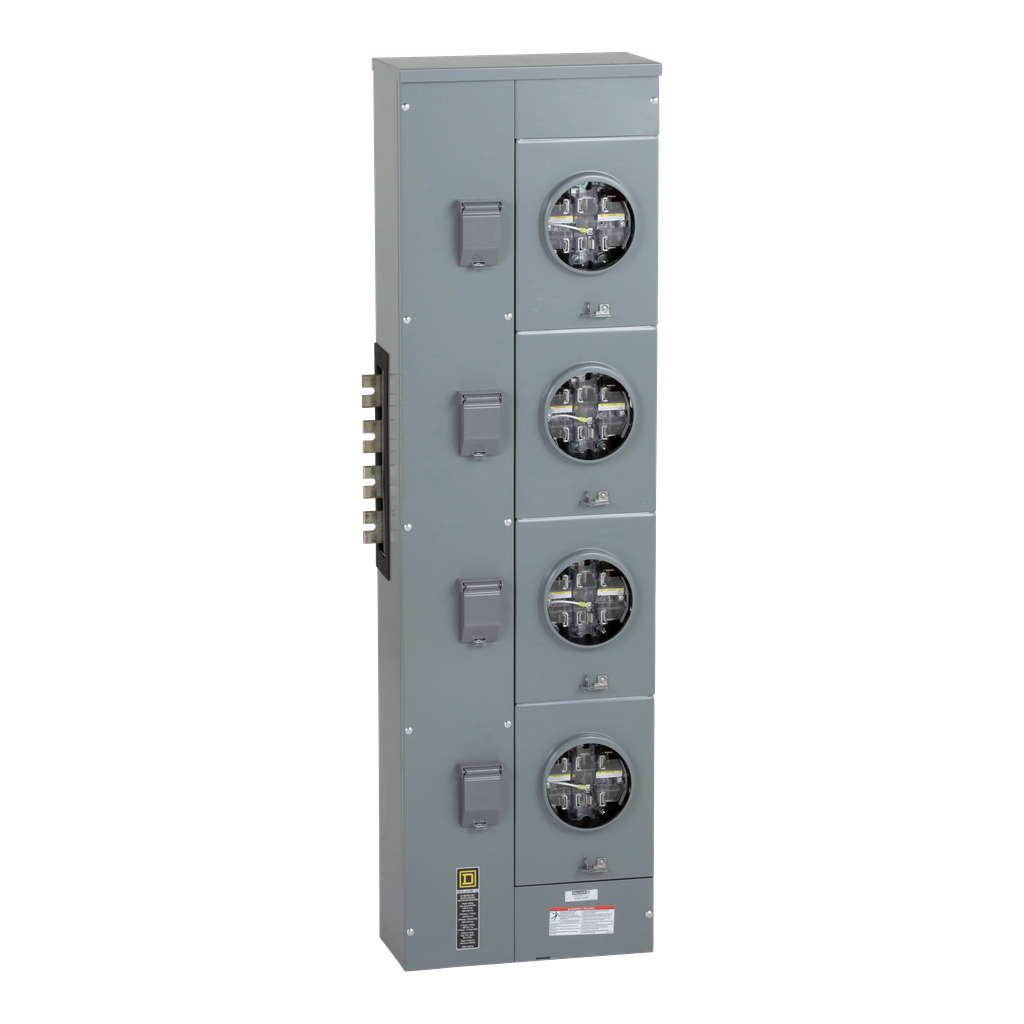

Branch unit, EZ Meter-Pak, 225A, 4 sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar | Mayer Electric

Mayer Electric Supply . EZML334225

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameBranch unit, EZ Meter-Pak, 225A, 4 sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar | Mayer Electric
UPC785901299998
depth, length9.44
height67.06
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Branch-unit-EZ-Meter-Pak-225A-4-sockets-208Y-120-VAC-lever-bypass-ringless-1200A-Al-Cu-busbar-785901299998
jsonUrlData242477af8-1e5c-4fac-b04e-abd200621278
length_AttribDepth
moq, multiple, tierMinQty11
MPNEZML334225
qtyInStock0
SKUSQDEZML334225
tierPrice13902.55
width19.44
width_AttribWidth
Range Of ProductMeter-Pak
Bypass Typelever bypass
Meter Socket Typeringless
Number Of Meter Sockets4
Line Rated Current225 A
Bus Rated Current1200 A
Product Or Component TypeMeter Center Branch Unit
Number Of Jaws7 with jaw release
Warranty18 months
Product CertificationsUL Listed
Height67.06 in
Phase3 phase in || 3 phase out
Nema Degree Of ProtectionNEMA 3R
Device Mountingsurface
[Ue] Rated Operational Voltage208Y/120 V AC || 240/120 V delta AC
Materialaluminium/copper busbar
Enclosure Materialsteel
Wiring Configuration4-wire
Width19.44 in
Depth9.44 in
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEZML334225111 @ $3902.55
