3M

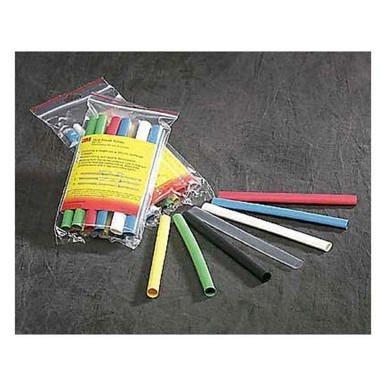

Heat Shrink Tubing, Thin Wall, Material Polyolefin, Flexible, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 4/0 AWG to 500 MCM, I.D. Before Shrinking 1 in, I.D.

3M . FP301-1-48"-RED-24 PCS

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name3M
DimensionUnitinch
GraingerSku2JRH5
UPC00051128599006
UnitOfMeasurePK
Weight4.7
WeightUnitlbs
atoms24
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height, width6.3
jsonUrlData924526ffbdad25e5923b
length50.5
moq, multiple, tierMinQty11
MPNFP301-1-48"-RED-24 PCS
qtyInStock12
qtyInStockOverride-2
SKUG5501876
tierPrice1125.00
urlhttps://www.zoro.com/3m-shrink-tubing-10in-id-red-4ft-pk24-fp301-1-48-red-24-pcs/i/G5501876/
ColorRed
Shrink Tubing I D Before Shrinking1.0 in
Shrink Tubing Material, MaterialPolyolefin
I D After Shrinking0.5 in
Shrink Tubing Type, ItemHeat Shrink Tubing
Flame RetardantYes
Shrink Tubing Wall Type, Tubing Wall TypeThin Wall
Shrink Tubing Length, Length, Length (Straight Wireway)4 ft
Shrink Tubing Usable Temp Range, Temp Range-67 Degrees to 275 Degrees F
Shrink Tubing Adhesive Lined, Adhesive LinedNo
Use Shrink Tubing With Wire Size4/0 AWG to 500 kcmil
Shrink Ratio2:1
StandardsCSA Certified, RoHS 2011/65/EU, UL E39100
Max Voltage, Dielectric Strength600 V
Min Shrink Temp212 Degrees F
FeaturesBalances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections
Shrink Tube Material TypeFlexible
Shrink Tubing Wall Thickness After Shrinking0.035 in
I D Before Shrinking1 in
Use With Wire Size4/0 AWG to 500 MCM
Package StyleIndividual Pieces
Shrink Tubing PropertiesAcid and Alkali Resistant, Solvent Resistant
Max Temp Rating275 Degrees F
Wall Thickness After Shrinking0.04 in
Min Temp Rating-67 Degrees F
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG550187611211 @ $125.00
simsupply.comZO-G550187614211 @ $162.22
