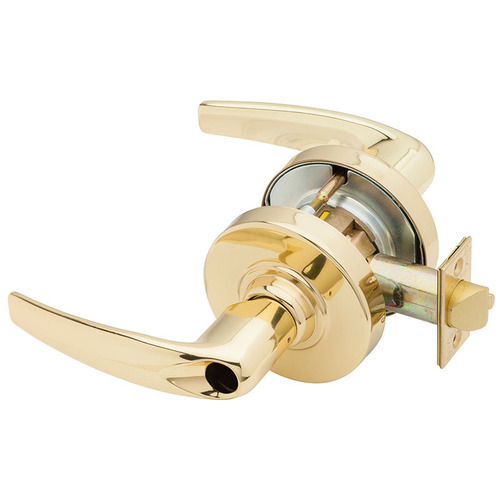

Schlage Commercial ND91LD ATH 605 ND Series Vandlgard Entry / Office Less Cylinder Athens with 13-247 Latch 10-025 Strike Bright Brass Finish

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND91LD ATH 605 ND Series Vandlgard Entry / Office Less Cylinder Athens with 13-247 Latch 10-025 Strike Bright Brass Finish
atoms, moq, multiple, tierMinQty1, Package Qty1
height10.0
height_AttribCase Height
length16.375
length_AttribCase Length
MPNND91LD ATH 605
qtyInStock0
tierPrice1610.34
width14.625
width_AttribCase Width
GradeANSI/BHMA Grade 1
Thickness1-5/8" - 2-1/8"
HandNot Handed
Color Code605/US3
Case Length16.375"
Function91-Vandlgard Entrance/Office
Cylinder TypeL-Less Conventional Cylinder
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75"
Package Length9.5"
Package Volume372.28125
Package Width8.25"
ANSI FunctionF82
Bolt Protection1/2"
Case Height10"
Case Volume2394.84375
Case Width14.625"
Latch Backset Dim2-3/4 In.
Latch Number13-247
Latch TypeDeadlatch
Lever/Knob DesignATH - Athens
Lock Face Size2-1/4 In. x 1-1/8 In.
Rose/Escutcheon Design3-7/16 In. Diameter
ScrewsCombination
Special MarksFire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number10-025
Strike TypeANSI Strike
Strike Width1-1/4"
Base MaterialBrass
Finish, Finish DescriptionBright Polished Brass
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignAthens
Lever StyleATH-Athens
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
HandingReversible
Projection3.3125
Lever Length4.5625
Door Thickness1 5/8" - 2 1/8"
Bore Size2.1250
ADA ApprovedFalse
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Warranty10 year mechanical
Handle TypeLever
Rose Diameter3-7/16 Inch
Latch Throw1/2 Inch
ADA CompliantYES
Finish FamilyPolished Brass
Door Cross Bore2.125 Inch
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Cylinder Type UsedLess Cylinder
Function DescriptionPush button locking. Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by button inside or in face (edge). Inside knob/lever always free.
Front Size1-1/8" x 2-1/4"
Function FamilyEntry/Entrance/Office
Strike Lip1-3/16 Inch
Product Projection3-5/16 Inch
Trim MaterialPressure Cast Zinc (Lever)
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Lever Length-Inches4.5625 Inch
Latch CornerSquare
Knob/Lever Size4-9/16 Inch
Latch Bolt MaterialStainless Steel
Lever Style FamilyStraight Lever
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_333
Strike Size1-1/4" x 4-7/8"
