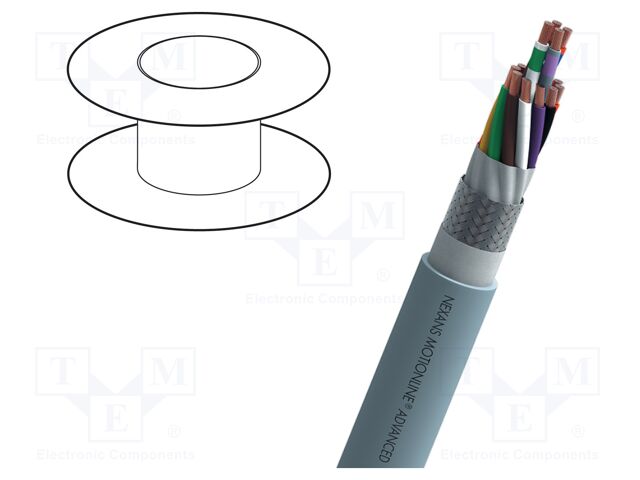

NEXANS Q103404E100 | Wire; MOTIONLINE? ADVANCED,MOVETRONIC C PVC; 4x0,34mm2; PVC
NEXANS Q103404E100 | Wire; MOTIONLINE? ADVANCED,MOVETRONIC C PVC; 4x0,34mm2; PV
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | NEXANS |
|---|---|
| CategoryL1 | Wires and Cables |
| CategoryL2 | Cables |
| CategoryL3 | Multicore Cables |
| CategoryL4 | Multicore Cables - Shielded |
| DimensionUnit | mm |
| Extra Product Name | NEXANS Q103404E100 | Wire; MOTIONLINE? ADVANCED,MOVETRONIC C PVC; 4x0,34mm2; PVC |
| atoms | 1 |
| diameter, length, width | 5.1 |
| jsonUrlData | 549888b72e6352e7798c0acbe8ec7a36. |
| jsonUrlData2 | a72ec4a66974824279dc |
| keywords | NEXANS, Q103404E100, Wires and Cables, Cables, Multicore Cables, Multicore Cables - Shielded |
| length_Attrib, width_Attrib | Cable external diameter |
| moq, multiple, tierMinQty1, Flexibility class | 5 |
| MPN, SKU | Q103404E100 |
| qtyInStock | 0 |
| snippet | NEXANS Q103404E100 | Wire; MOTIONLINE? ADVANCED,MOVETRONIC C PVC; 4x0,34mm2; PV |
| tierMinQty2 | 25 |
| tierMinQty3 | 50 |
| tierMinQty4 | 100 |
| tierPrice1 | 2.2 |
| tierPrice2 | 1.8 |
| tierPrice3 | 1.61 |
| tierPrice4 | 1.41 |
| Type of wire | control cable |
| Core structure | stranded |
| Kind of core | Cu |
| Number of cores | 4 |
| Core section | 0.34mm |
| Kind of wire | MOTIONLINE? ADVANCED, |
| Core marking | colours without colour repetition |
| Shield structure | shielded, |
| Wire insulation material | PVC |
| Insulation colour | grey |
| Rated voltage | 300V |
| Kind of material | no flame propagation |
| Operating temperature | 5...80?C |
| Resistance to | flame, |
| Cable external diameter | 5.1mm |
| Earth core | none |
| Conform to the norm | UL 1581 |
| Information | The UL Label and Mark on full factory packaging only |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Q103404E100 | 5 | 5 | 5 @ $2.20, 25 @ $1.80, 50 @ $1.61, 100 @ $1.41 |
