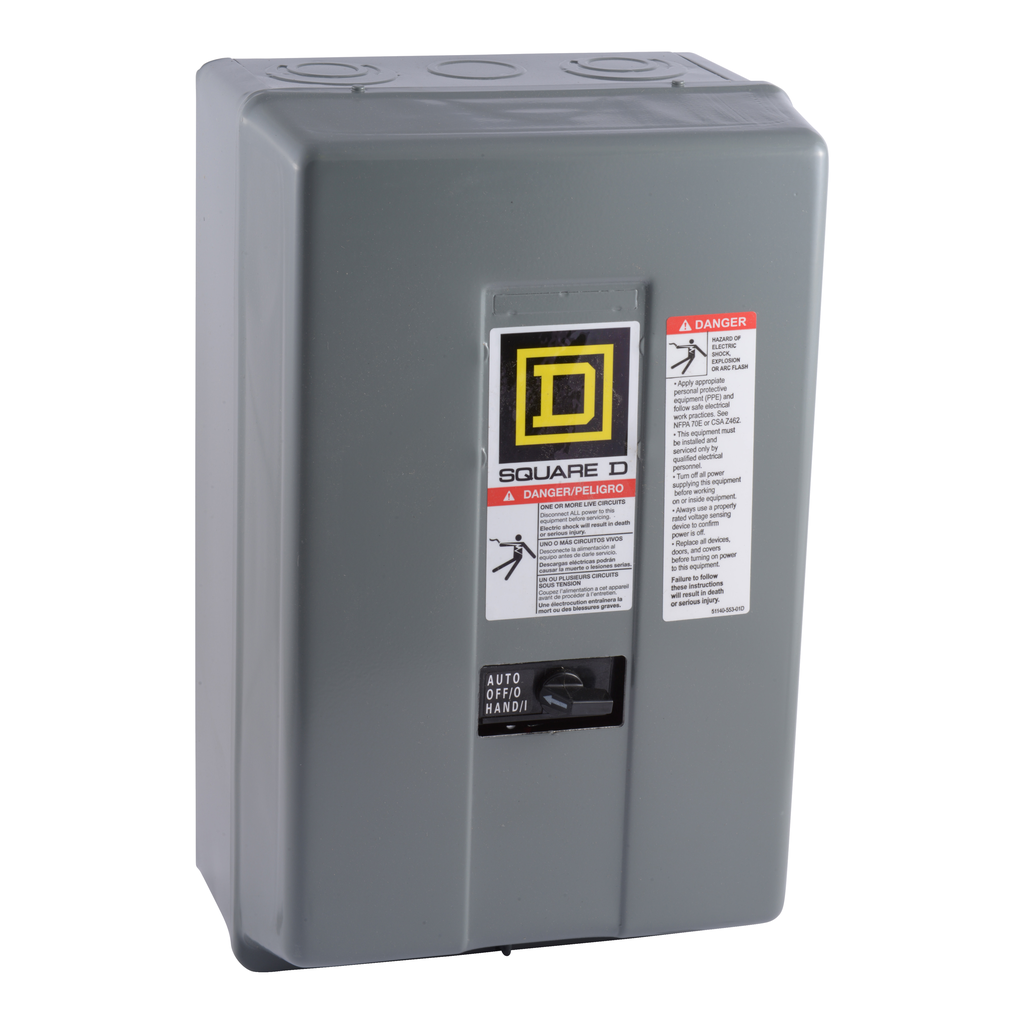

Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 | Mayer Electric

Shop SQUARE D at Mayer. Type L/LX Lighting Contactors 8903L Electrically Held - 8903LG30V02C

Mayer Electric Supply . 8903LG30V02C

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameContactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1 | Mayer Electric
UPC785901022640
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Contactor-Type-L-multipole-lighting-electrically-held-30A-3-pole-600-V-110-120-VAC-50-60-Hz-coil-NEMA-1-option-785901022640
jsonUrlData29df19d83-43ad-499f-9605-abd2006137f6
keywordsSQUARE D, Mayer SQUARE D, 785901022640, 8903LG30V02C
length_AttribDepth
moq, multiple, tierMinQty11
MPN8903LG30V02C
qtyInStock0
SKUSQD8903LG30V02C
snippetShop SQUARE D at Mayer. Type L/LX Lighting Contactors 8903L Electrically Held - 8903LG30V02C
tierPrice1789.09
width198.0
width_AttribWidth
Range Of Product8903L
Control Circuitseparate control circuit
Product Or Component TypeElectrically Held Lighting Contactor
Warranty18 months
Local Signallingno indicator
Height322 mm
Control Typeselector switch HAND-OFF-AUTO)
[Uc] Control Circuit Voltage110 V AC 50 Hz || 120 V AC 60 Hz
Hold-In Power Consumption In Va30-30 VA 60 Hz || 30-30 VA 50 Hz
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Inrush Power In Va150-150 VA 60 Hz || 140-140 VA 50 Hz
Poles Description3P 3 NO
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8903LG30V02C111 @ $789.09
