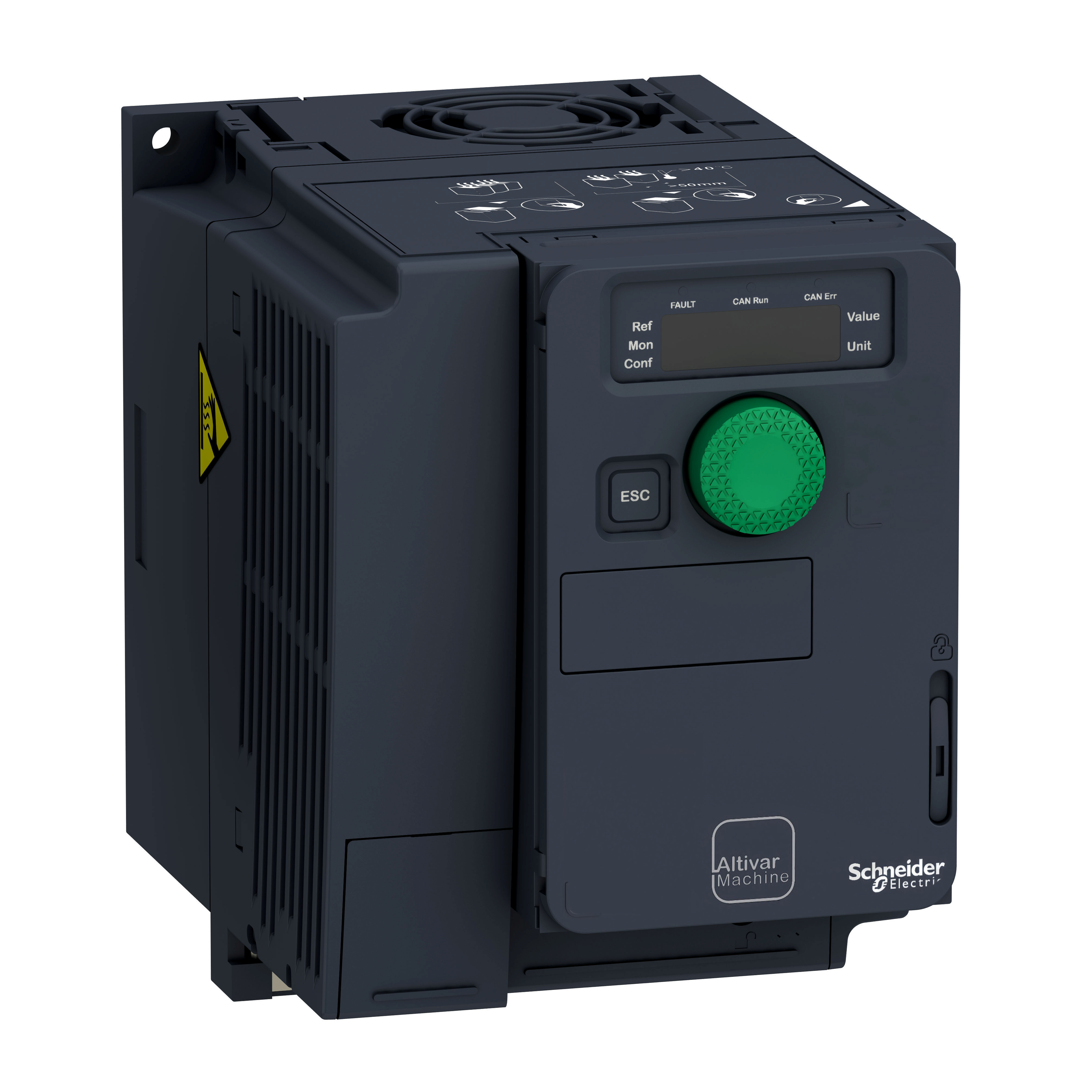

SCHNEIDER ELECTRIC, 600V AC, 1 hp Max Output Power, Variable Frequency Drive - 443L36|ATV320U07S6C - Grainger

SquareD ATV320U07S6C ATV320 Compact drive IP20 -1HP-575/600V 3ph - MROSupply.com

SCHNEIDER ELECTRIC . ATV320U07S6C

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandSCHNEIDER ELECTRIC
CategoryL1Motors
CategoryL2Motor Drives & Speed Controls
DimensionUnitinch
HazmatFalse
Extra Product NameSCHNEIDER ELECTRIC, 600V AC, 1 hp Max Output Power, Variable Frequency Drive - 443L36|ATV320U07S6C - Grainger
height5.5
height_AttribOverall Height
length6.1875
length_AttribOverall Depth
moq, multiple, tierMinQty11
MPN, Mfr Model?, Manufacturer Part NumberATV320U07S6C
qtyInStock0
SKU, Item?443L36
tierPrice1774.40
width4.125
width_AttribOverall Width
Enclosure RatingNEMA 1
Maximum Output Power1 hp
Input Voltage, Output Voltage600V AC
Input Phase AC, Output Phase ACThree
Input Frequency50/60 Hz
Output Frequency Range0.1 to 599 Hz
Maximum Output Current1.7 A
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
Start/Stop ControlProgrammable
ApplicationComplex machines
EnclosureOpen
Overall Depth6-3/16 in
Overall Height5-1/2 in
Overall Width4-1/8 in
Display TypeLED
Control Method, Control TypeKeypad, Remote, Terminal, Network
StandardsEN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Adjustable Acceleration Time, Adjustable Deceleration Time0 to 6000 sec
Brake Chopper Included, Key Pad LockoutYes
ColorBlack
Digital Readout, DisplaysSet Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Dynamic Braking, Ethernet Port IncludedNo
Input Type, Output TypeAnalog; Discrete
Input Voltage Range460V AC to 660V AC
Number of Inputs(3) Analog; (7) Discrete
Number of Outputs(1) Analog; (3) Discrete
Output Voltage Range525V AC to 600V AC
ProtectionInput phase breaks: drive; Overcurrent between output phases and earth: drive; Overheating protection: drive; Short-circuit between motor phases: drive; Thermal protection: drive
Starting Torque, Torque @ 1 Hz1.5
StyleCompact
Torque ApplicationConstant Torque; Variable Torque
SeriesAltivar 320
Sub-brandAltivar(TM) 320 Machine Drive
UNSPSC26111503
Country of OriginIndonesia

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Grainger443L36111 @ $774.40
MRO Supply522716311
ZoroG5930939111 @ $851.84
Allied Electronics7136115411
gordonelectricsupply.comATV320U07S6C1This Item Usually Ships in 3-5 Days11 @ $625.08
RS Delivers200-6183111 @ $875.80
industrialrefrigerationparts.comATV320U07S6C111 @ $1029.38
steinerelectric.com1000835111 @ $749.20
Digi-Key16613230111 @ $589.25
cappusa.com4810689111 @ $574.30
Crescent Electric Supply Co217788011
GalcoATV320U07S6C-SQD111 @ $754.68
us.rs-online.com71361154111 @ $762.17, 5 @ $724.07
crescentelectric.com641510111 @ $1011.69
mayerelectric.comSQDATV320U07S6C111 @ $710.97
blackhawksupply.comATV320U07S6C1-211 @ $663.19
