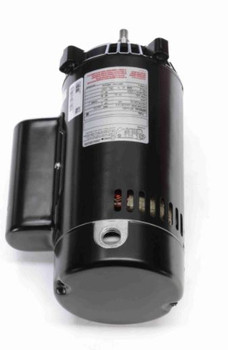

T1202 CENTURY JET PUMP MOTOR

Internally mounted capacitor Sealed switch design Threaded shaft Nameplate Specifications Phase: 1 Output HP: 2 Hp Output KW: 1.5 kW Voltage: 230/115 V Speed: 3450 rpm Service Factor: 1.2 Frame: 56J Enclosure: Open Drip Proof Thermal Protection: Automatic Efficiency: 77.9 % Ambient Temperature: 40 ?C Frequency: 60 Hz Current: 11.3/22.6 A Duty: Continuous Insulation Class: B UL: No CSA: Y CE: N Number of Speeds: 1 Technical Specifications Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line Poles: 2 Rotation: Counterclockwise Pump End Mounting: Round Drive End Bearing
