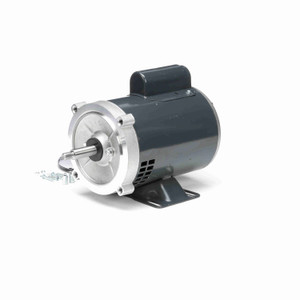

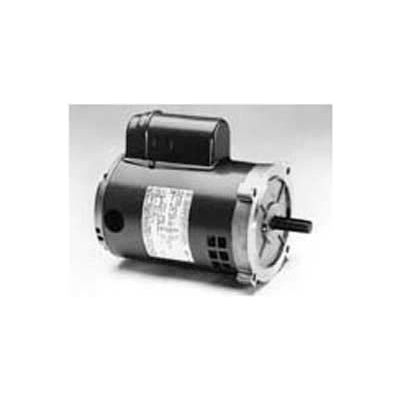

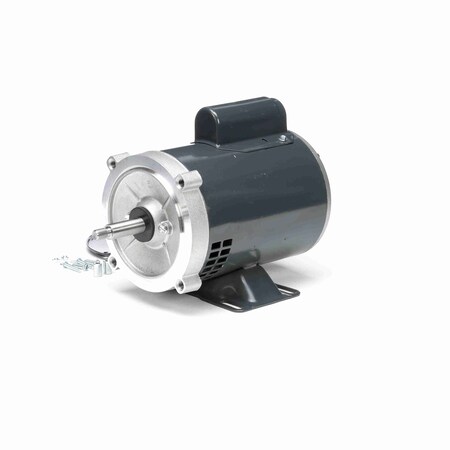

Marathon Motors Centrifugal Pump Motor, J055, 1/2HP, 115/208-230V, 3600RPM, 1PH, 56J FR, DP
AC Motor, 0.50 HP General Purpose Pump Motor, 1 phase, 3600 RPM, 115/208-230 V,
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, BRAND | Marathon Motors |
|---|---|
| CategoryL1 | Electric Motors-Definite Purpose |
| CategoryL2 | Pool & Pump Motors |
| Extra Product Name | Marathon Motors Centrifugal Pump Motor, J055, 1/2HP, 115/208-230V, 3600RPM, 1PH, 56J FR, DP |
| Voltage, VOLTAGE | 115/208-230 |
| moq, multiple, tierMinQty1, PHASE | 1 |
| MPN, MANUFACTURERS PART NUMBER | J055 |
| qtyInStock | 0 |
| SKU | WBB869045 |
| tierPrice1 | 148.95 |
| HORSEPOWER | 1/2 |
| ENCLOSURE | DP |
| FRAME | 56J |
| MOUNTING | C-Face Rigid |
| MOTOR RPM 60Hz, RPM, 60 HERTZ RPMS | 3600 |
| SERVICE FACTOR | 1.6 |
| THERMAL PROTECTION | Automatic Protector |
| AMBIENT TEMP C | 40 |
| ROTATION | CW |
| ENCLOSURE TYPE | Open/Drip Proof |
| OPPOSITE END BEARING, BEARING-DRIVE-END, DRIVE END BEARING SIZE, OPPOSITE END BEARING SIZE | 6203 |
| WEIGHT | 17 |
| UL | Recognized Construction and Protector |
| CSA | Y |
| DUTY | Continuous |
| RPM RANGE | 3001-3600 |
| MODEL NUMBER | 56C34D2119 |
| 60 HERTZ kW | 0.37 |
| is_motor | Yes |
| KVA-CODE | L |
| NEMA DESIGN | Definite Duty |
| STARTING TYPE | Cap Start Ind Run |
| IP CODE | 22 |
| ORIENTATION | Horizontal |
| ASSEMBLY | F1 Only |
| FL AMPS | 7.4/3.5-3.7 |
| INSULATION CLASS | B |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Global Industrial | WBB869045 | 1 | 1 | 1 @ $148.95 | |
 electricmotorwholesale.com | J055 | 1 | 1 | ||
| Galco | J055 | 60 | -2 | 60 | 1 @ $74.20 |
| AmazonSC | B0042GI0N2 | 1 | 1 | ||
| Applied Industrial | 113089872 | 1 | 1 | ||
| Square One | J055 | 1 | 1 | ||
 Zoro | G102161569 | 1 | 1 | 1 @ $358.18 | |
| Allied Electronics | 72650738 | 1 | 1 | ||
 Dreisilker | MA-RBC-J055 | 1 | -2 | 1 | 1 @ $272.67 |
 cbtcompany.com | J055 | 1 | 1 | ||
 Galco | J055-MARA | 60 | 60 | 1 @ $74.20 | |
| us.rs-online.com | 72650738 | 1 | 1 | 1 @ $86.75 | |
| industrialmotors.com | J055 | 1 | 1 | ||
 apexindustrialautomation.com | J055 | 1 | 1 | ||
| MRO Supply | 2269121 | 1 | 1 |
